TLV76015DBZT دیتاشیت

TLV76015DBZT

مشخصات دیتاشیت

نام دیتاشیت TLV76015DBZT
حجم فایل 80.352 کیلوبایت
نوع فایل pdf
تعداد صفحات 25

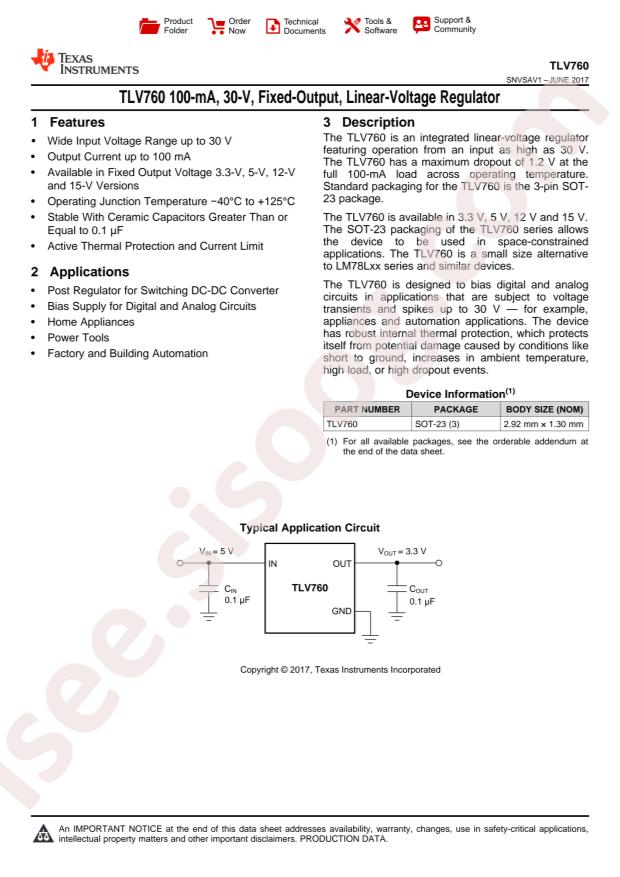

مشاهده دیتاشیت TLV76015DBZT

دانلود دیتاشیت

سایر مستندات

TLV760 Datasheet 25 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Texas Instruments TLV76015DBZT
  • Output Type: Fixed
  • Output Current: 100mA
  • Output Voltage: 15V~15V
  • Dropout Voltage: 1.2V@(100mA)
  • Output Polarity: Positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 30V
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Quiescent Current (Ground Current): 5mA

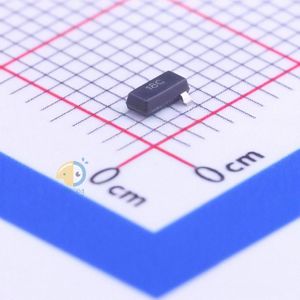

  • Package: SOT-23
  • Manufacturer: Texas Instruments
  • Voltage - Input (Max): 30V
  • Current - Quiescent (Iq): 5mA
  • Output Configuration: Positive
  • Base Part Number: TLV760
  • Voltage - Output (Min/Fixed): 15V
  • Protection Features: Over Temperature
  • Series: -
  • Packaging: Cut Tape (CT)
  • PSRR: -
  • Supplier Device Package: SOT-23-3
  • Package / Case: TO-236-3, SC-59, SOT-23-3
  • Number of Regulators: 1
  • Part Status: Active
  • Control Features: -
  • Voltage - Output (Max): -
  • Mounting Type: Surface Mount
  • Voltage Dropout (Max): 1.1V @ 100mA
  • Current - Output: 100mA
  • detail: Linear Voltage Regulator IC 1 Output 100mA SOT-23-3
