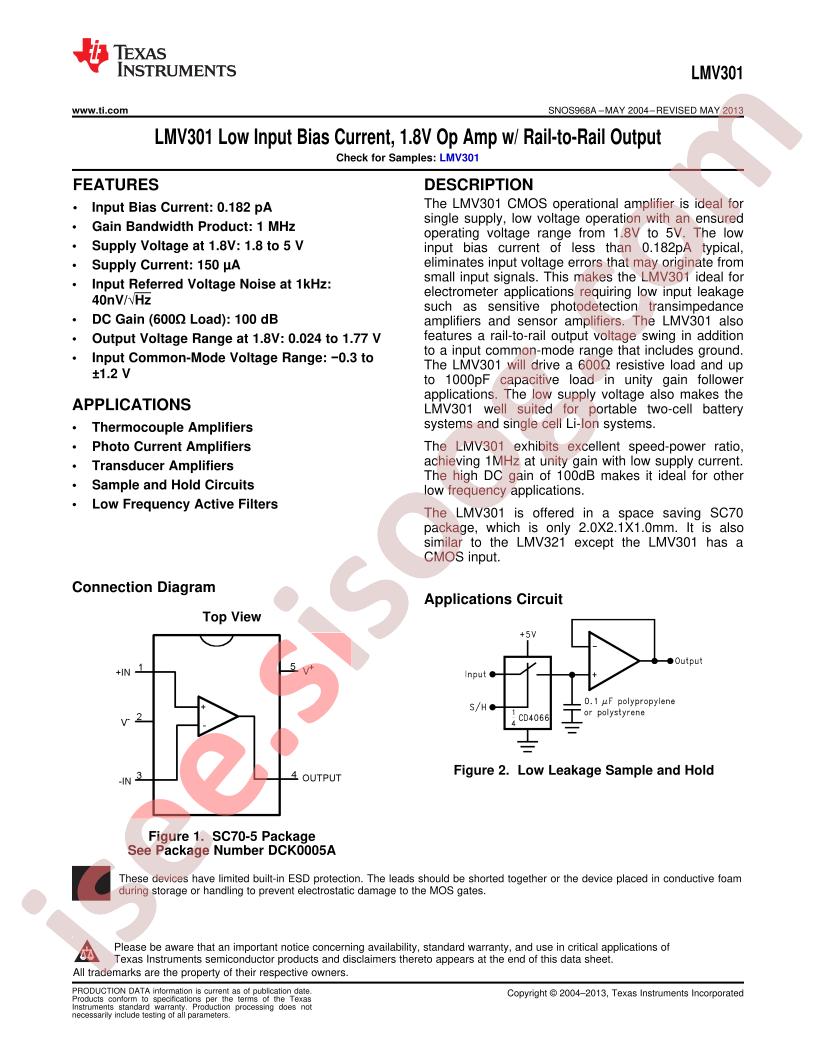

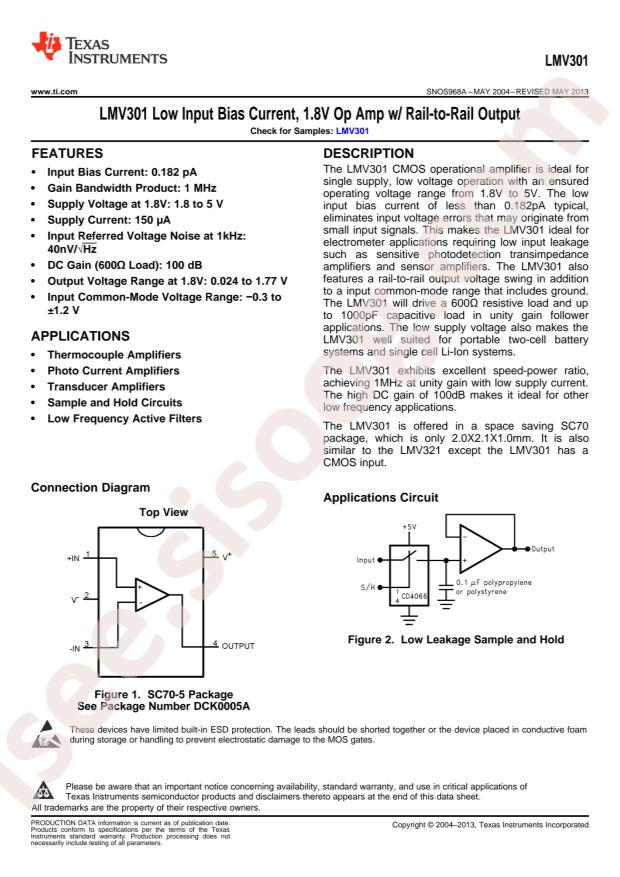

LMV301MG/NOPB 数据手册
其他文档
LMV301 27 pages
技术规格
- RoHS: true
- Category: Operational Amplifier/Comparator/Operational Amplifier
- Datasheet: Texas Instruments LMV301MG/NOPB
- Rail to Rail: 轨到轨
- -3db Bandwidth: -
- Output Current: 108mA
- Number of Circuits: 1
- Operating Temperature: -40°C~+85°C
- Current - Input Bias(Ib): 0.182pA
- Gain Bandwidth Product(GBP): 1MHz
- Package: SC-70-5
- Manufacturer: Texas Instruments
- Current - Output / Channel: 108mA
- Slew Rate: 0.66V/µs
- Voltage - Input Offset: 900µV
- Part Status: Active
- Packaging: Cut Tape (CT)
- Supplier Device Package: SC-70-5
- Package / Case: 5-TSSOP, SC-70-5, SOT-353
- Voltage - Supply, Single/Dual (±): 1.8V ~ 5V, ±0.9V ~ 2.5V
- Series: -
- Output Type: Rail-to-Rail
- Base Part Number: LMV301
- Current - Supply: 163µA
- Mounting Type: Surface Mount
- Amplifier Type: General Purpose
- Current - Input Bias: 0.182pA
- Gain Bandwidth Product: 1MHz
- detail: General Purpose Amplifier 1 Circuit Rail-to-Rail SC-70-5
