دیتاشیت LP3996SD-1833/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LP3996 Datasheet |
|---|---|
| حجم فایل | 1223.977 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 21 |
دانلود دیتاشیت LP3996 Datasheet |

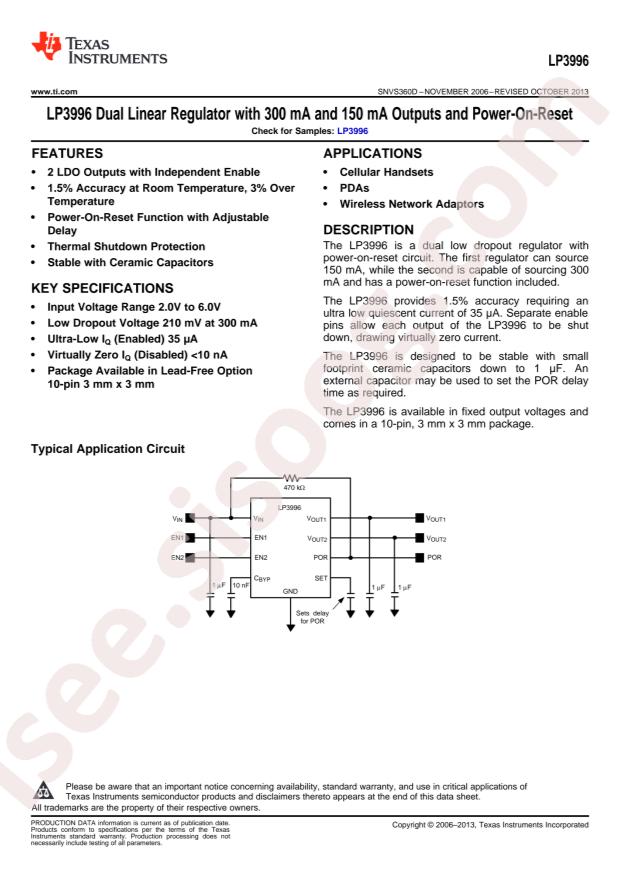

LP3996 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Texas Instruments LP3996SD-1833/NOPB
- Output Type: Fixed
- Output Current: 150mA;300mA
- Output Voltage: 1.8V;3.3V
- Dropout Voltage: 220mV@(150mA);550mV@(150mA)
- Output Polarity: Positive
- Number of Outputs: 2
- Maximum Input Voltage: 6V
- Power Supply Rejection Ratio (PSRR): 58dB@(1kHz),45dB@(20kHz);70dB@(1kHz),60dB@(20kHz)
- Package: DFN-10(3x3)
- Manufacturer: Texas Instruments
- Current - Supply (Max): 170µA
- Output Configuration: Positive
- Package / Case: 10-WFDFN Exposed Pad
- Packaging: Cut Tape (CT)
- Protection Features: Over Temperature, Short Circuit
- Number of Regulators: 2
- Part Status: Active
- Current - Quiescent (Iq): 100µA
- Operating Temperature: -40°C ~ 85°C
- Supplier Device Package: 10-WSON (3x3)
- Voltage - Input (Max): 6V
- Voltage - Output (Min/Fixed): 1.8V, 3.3V
- Mounting Type: Surface Mount
- PSRR: 58dB ~ 45dB, 70dB ~ 60dB (1kHz ~ 20kHz)
- Base Part Number: LP3996
- Series: -
- Control Features: Enable
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.22V @ 150mA, 0.55V @ 150mA
- Current - Output: 150mA, 300mA
- detail: Linear Voltage Regulator IC 2 Output 150mA, 300mA 10-WSON (3x3)
