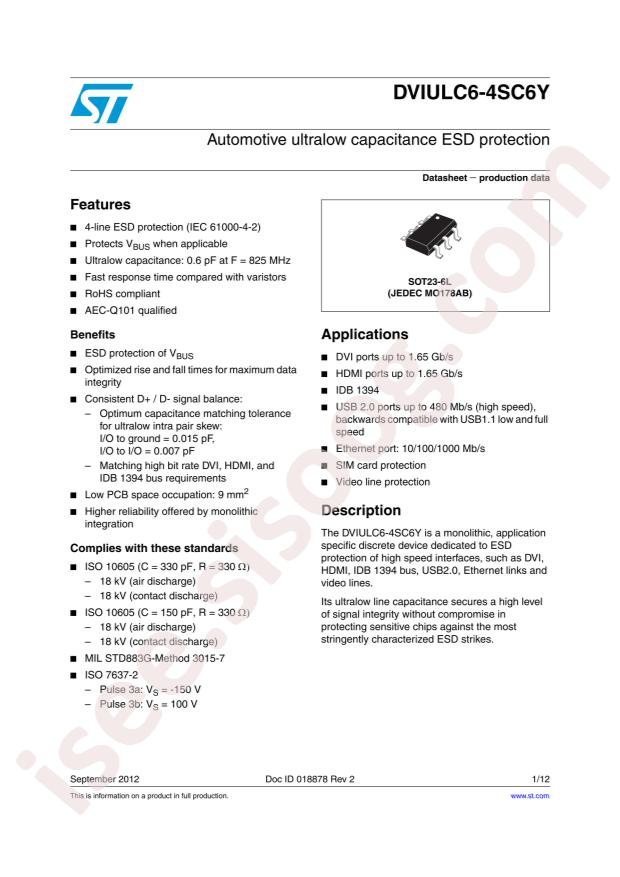

دیتاشیت DVIULC6-4SC6Y

DVIULC6-4SC6

مشخصات دیتاشیت

نام دیتاشیت DVIULC6-4SC6
حجم فایل 179.185 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

دانلود دیتاشیت DVIULC6-4SC6

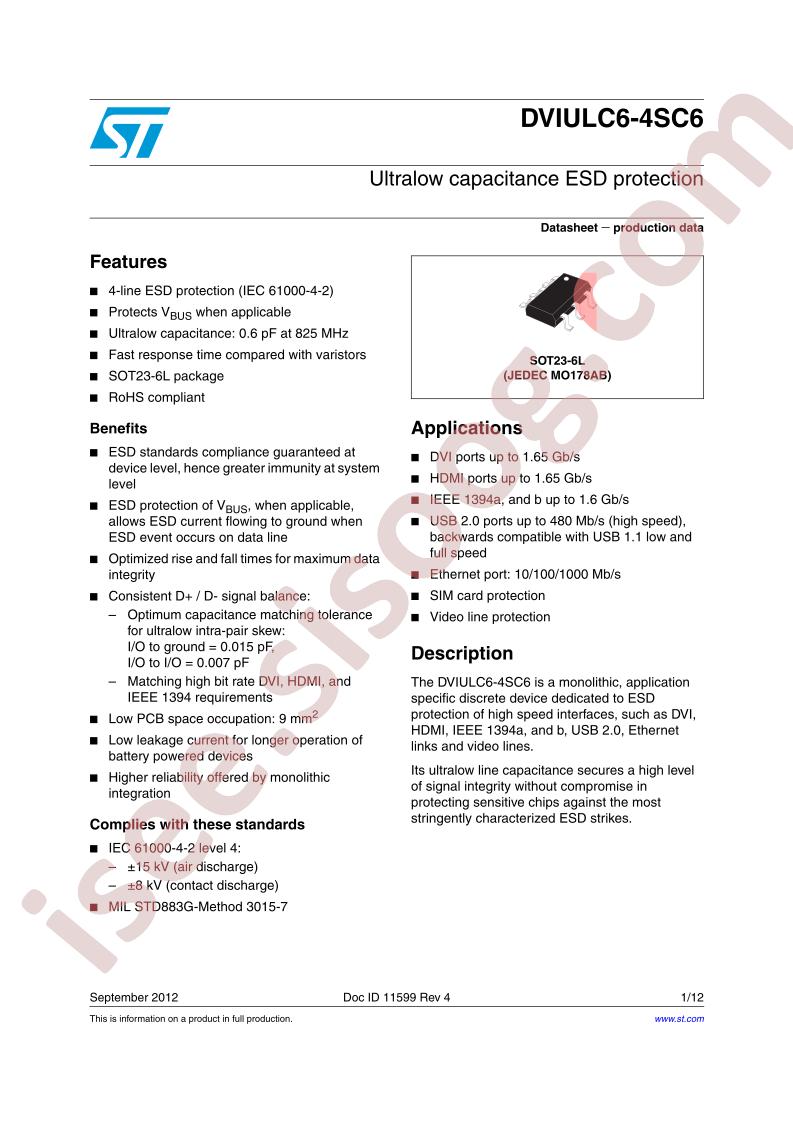

DVIULC6-4SC6 Datasheet

مشخصات

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
  • Datasheet: STMicroelectronics DVIULC6-4SC6Y
  • Number of Lines: 4
  • Clamping Voltage@Ipp: 17V
  • Operating Temperature: -40°C~+150°C@(Tj)
  • Breakdown Voltage (VBR): 6V
  • Peak Pulse Power(Ppp)@8/20us: -
  • Junction Capacitance(Cj)@1MHz: 0.85pF@1MHz
  • Peak Pulse Current(Ipp)@8/20us: 5A@(8/20us)
  • Reverse Stand-Off Voltage (Vrwm): 5V
  • Package: SOT-23-6
  • Manufacturer: STMicroelectronics
  • Series: DVI
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: Steering (Rail to Rail)
  • Unidirectional Channels: 4
  • Voltage - Reverse Standoff (Typ): 5V
  • Voltage - Breakdown (Min): 6V
  • Voltage - Clamping (Max) @ Ipp: 17V
  • Current - Peak Pulse (10/1000µs): 5A (8/20µs)
  • Power - Peak Pulse: 80W
  • Power Line Protection: Yes
  • Applications: General Purpose
  • Capacitance @ Frequency: 0.85pF @ 1MHz
  • Mounting Type: Surface Mount
  • Package / Case: SOT-23-6
  • Supplier Device Package: SOT-23-6
  • Base Part Number: DVIULC6
  • detail: 17V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-6
