TPS5402DR دیتاشیت

مشخصات دیتاشیت

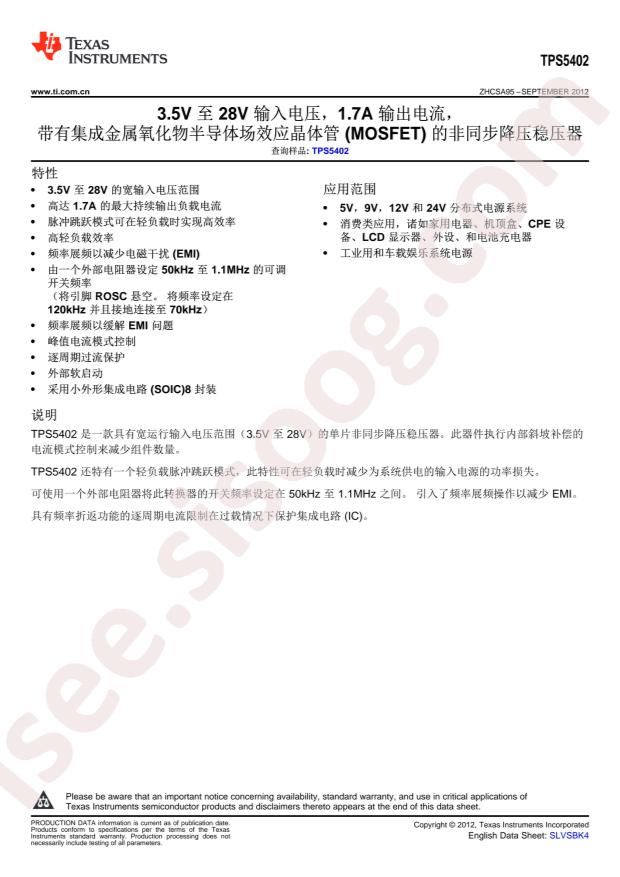

مشاهده دیتاشیت TPS5402DR	دانلود دیتاشیت

TPS5402 19 pages

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: Texas Instruments TPS5402DR
Output Type: Adjustable
Input Voltage: 3.5V~28V
Output Voltage: 0.8V~26.04V
Number of Outputs: 1
Switching Frequency: 1.1MHz
Output Current (Max): 1.7A
Operating Temperature: -40°C~+85°C@(TA)
Synchronous Rectification: NO
Package: SOP-8
Manufacturer: Texas Instruments
Current - Output: 1.7A
Voltage - Input (Max): 28V
Frequency - Switching: 50kHz ~ 1.1MHz
Part Status: Active
Base Part Number: TPS540
Voltage - Output (Min/Fixed): 0.8V
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Series: -
Packaging: Cut Tape (CT)
Synchronous Rectifier: No
Output Configuration: Positive
Voltage - Output (Max): 26.04V
Mounting Type: Surface Mount
Supplier Device Package: 8-SOIC
Voltage - Input (Min): 3.5V
detail: Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 1.7A 8-SOIC (0.154", 3.90mm Width)
