- دیتاشیت STP9NK60ZFP
STP9NK60ZFP دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | STP9NK60ZFP |
|---|---|
| حجم فایل | 68.534 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 19 |
دانلود دیتاشیت STP9NK60ZFP |
دانلود دیتاشیت |
|---|
سایر مستندات

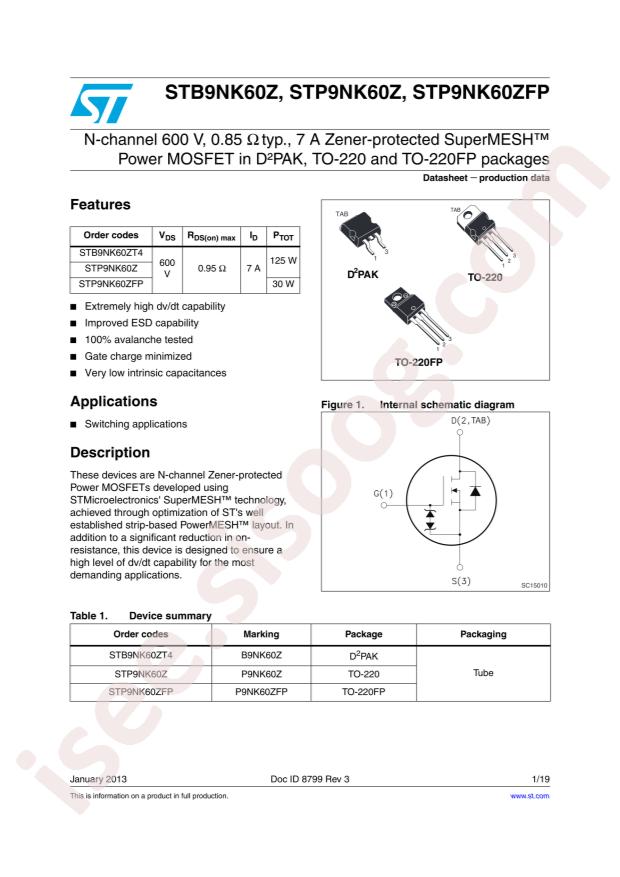

ST(B,P)9NK60Z(FP,-1) 19 pages
مشخصات فنی
- RoHS: true
- Type: N Channel
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: STMicroelectronics STP9NK60ZFP
- Operating Temperature: -55°C~+150°C@(Tj)
- Power Dissipation (Pd): 30W
- Total Gate Charge (Qg@Vgs): 53nC@10V
- Drain Source Voltage (Vdss): 600V
- Input Capacitance (Ciss@Vds): 1110pF@25V
- Continuous Drain Current (Id): 7A
- Gate Threshold Voltage (Vgs(th)@Id): 4.5V@100uA
- Drain Source On Resistance (RDS(on)@Vgs,Id): 950mΩ@10V,3.5A
- Package: TO-220FPAB-3
- Manufacturer: STMicroelectronics
- Series: SuperMESH™
- Packaging: Tube
- Part Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 600V
- Current - Continuous Drain (Id) @ 25°C: 7A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 950mOhm @ 3.5A, 10V
- Vgs(th) (Max) @ Id: 4.5V @ 100µA
- Gate Charge (Qg) (Max) @ Vgs: 53nC @ 10V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 1110pF @ 25V
- FET Feature: -
- Power Dissipation (Max): 30W (Tc)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220FP
- Package / Case: TO-220-3 Full Pack
- Base Part Number: STP9N
- detail: N-Channel 600V 7A (Tc) 30W (Tc) Through Hole TO-220FP
