دیتاشیت TN3050H-12WY

TN3050H-12WY

مشخصات دیتاشیت

نام دیتاشیت TN3050H-12WY
حجم فایل 221.869 کیلوبایت
نوع فایل pdf
تعداد صفحات 10

دانلود دیتاشیت TN3050H-12WY

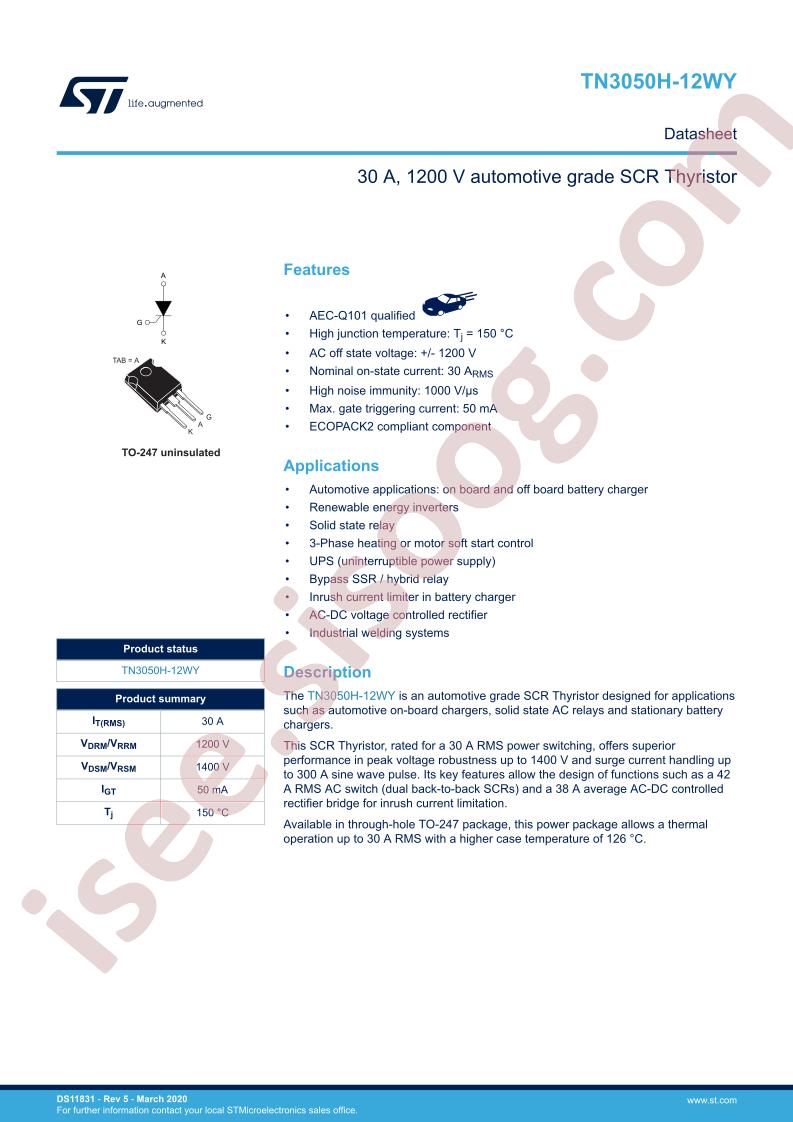

TN3050H-12WY Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: Automotive, AEC-Q101, ECOPACK®2
  • Packaging: Tube
  • Part Status: Active
  • Voltage - Off State: 1.2kV
  • Voltage - Gate Trigger (Vgt) (Max): 1.3V
  • Current - Gate Trigger (Igt) (Max): 50mA
  • Voltage - On State (Vtm) (Max): 1.65V
  • Current - On State (It (AV)) (Max): 19A
  • Current - On State (It (RMS)) (Max): 30A
  • Current - Hold (Ih) (Max): 100mA
  • Current - Off State (Max): 5µA
  • Current - Non Rep. Surge 50, 60Hz (Itsm): 300A, 330A
  • SCR Type: Sensitive Gate
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Mounting Type: Through Hole

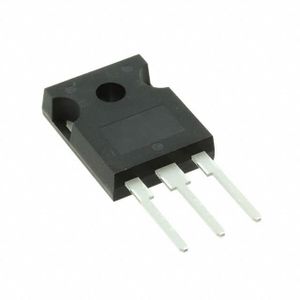

  • Package / Case: TO-247-3
  • Supplier Device Package: TO-247
  • Base Part Number: TN3050
  • detail: SCR 1.2kV 30A Sensitive Gate Through Hole TO-247
