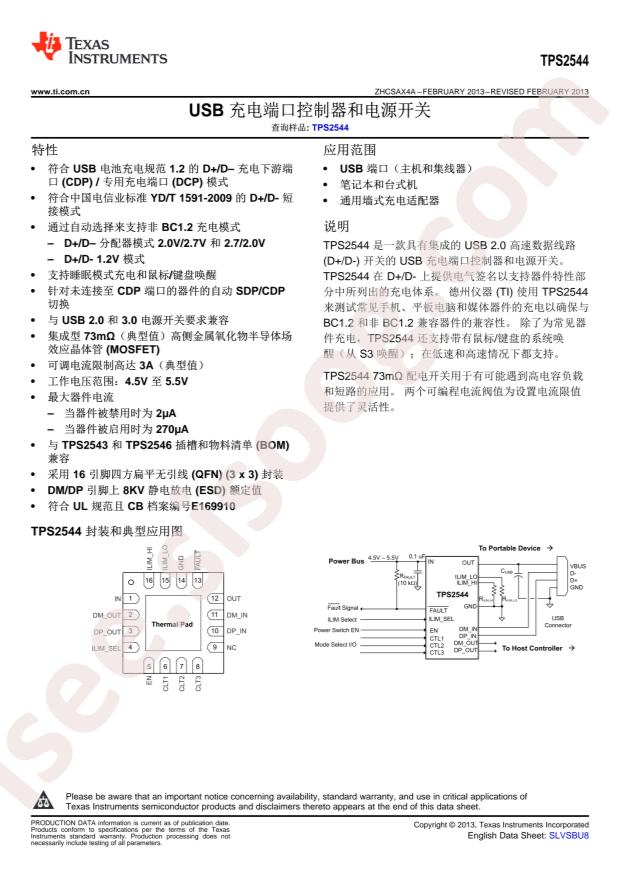

TPS2544RTER دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | TPS2544RTER |
|---|---|
| حجم فایل | 83.667 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 35 |
دانلود دیتاشیت TPS2544RTER |
دانلود دیتاشیت |
|---|
سایر مستندات
TPS2544 Datasheet 34 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Power Distribution Switches
- Datasheet: Texas Instruments TPS2544RTER
- Input Voltage: 4.5V~5.5V
- Output Current: 3A
- Number of Outputs: 1
- Resistor On-State: 73mΩ
- Operating Temperature -: -40°C~+125°C
- Package: QFN-16-EP(3x3)
- Manufacturer: Texas Instruments
- Input Type: Non-Inverting
- Output Configuration: High Side
- Operating Temperature: -40°C ~ 125°C (TJ)
- Packaging: Cut Tape (CT)
- Ratio - Input:Output: 1:1
- Switch Type: USB Switch
- Part Status: Active
- Supplier Device Package: 16-WQFN (3x3)
- Mounting Type: Surface Mount
- Fault Protection: Current Limiting (Adjustable), Over Temperature, UVLO
- Rds On (Typ): 73mOhm
- Current - Output (Max): 3A
- Package / Case: 16-WFQFN Exposed Pad
- Series: -
- Interface: On/Off
- Base Part Number: TPS254
- Features: -
- Output Type: N-Channel
- Voltage - Supply (Vcc/Vdd): Not Required
- Voltage - Load: 4.5V ~ 5.5V
- detail: Power Switch/Driver 1:1 N-Channel 3A 16-WQFN (3x3)
