- دیتاشیت UCC25630-3DDBT
UCC25630-3DDBT دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | UCC25630-3DDBT |
|---|---|
| حجم فایل | 83.764 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 67 |
دانلود دیتاشیت UCC25630-3DDBT |
دانلود دیتاشیت |
|---|
سایر مستندات

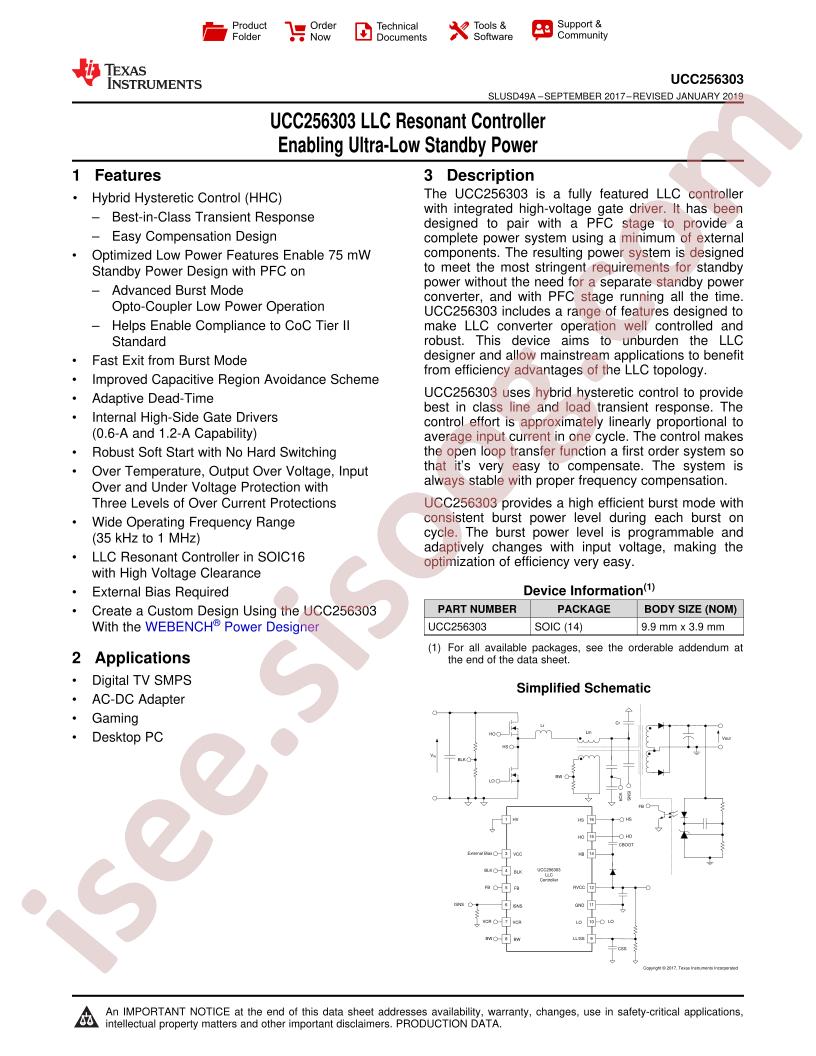

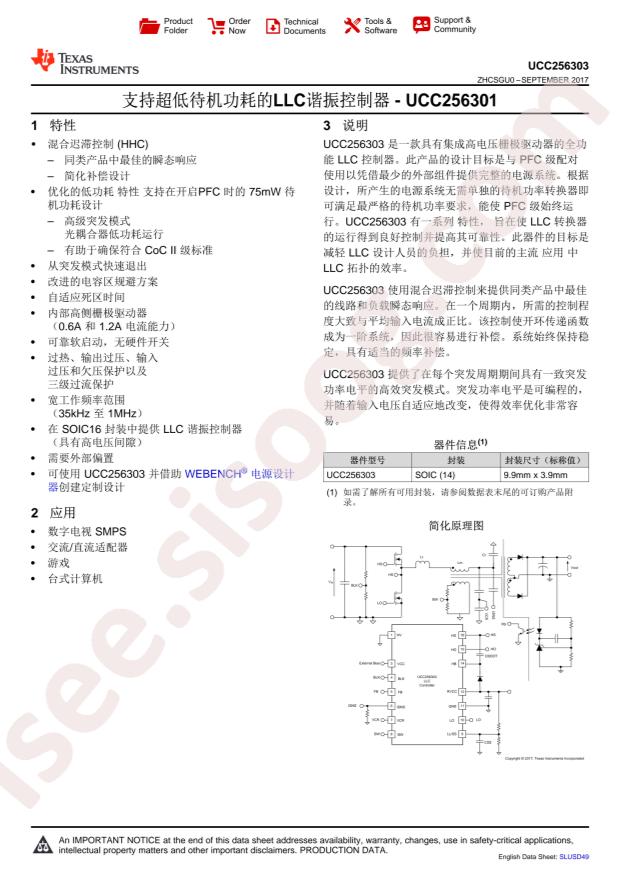

UCC25630-3 Datasheet 68 pages
UCC25630x Selection Guide 3 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Function: -
- Topology: Half-Bridge
- Datasheet: Texas Instruments UCC25630-3DDBT
- Input Voltage: 11.25V~26V
- Duty Cycle (Max): 50%
- Number of Outputs: 1
- Switching Frequency: 1MHz
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: NO
- Package: SOP-14
- Manufacturer: Texas Instruments
- Part Status: Active
- Package / Case: 16-SOIC (0.154", 3.90mm Width), 14 Leads
- Packaging: Cut Tape (CT)
- Frequency - Switching: 35kHz ~ 1MHz
- Supplier Device Package: 14-SOIC
- Serial Interfaces: -
- Synchronous Rectifier: No
- Clock Sync: No
- Mounting Type: Surface Mount
- Output Configuration: Positive, Isolation Capable
- Base Part Number: UCC256
- Series: -
- Output Type: Transistor Driver
- Control Features: Hybrid Hysteretic Control (HHC)
- Output Phases: 1
- Voltage - Supply (Vcc/Vdd): 11.25V ~ 26V
- detail: Half-Bridge Regulator Positive, Isolation Capable Output DC-DC Controller IC 14-SOIC
