دیتاشیت LM5023MM-2/NOPB

LM5023 Datasheet

مشخصات دیتاشیت

نام دیتاشیت LM5023 Datasheet
حجم فایل 1475.084 کیلوبایت
نوع فایل pdf
تعداد صفحات 38

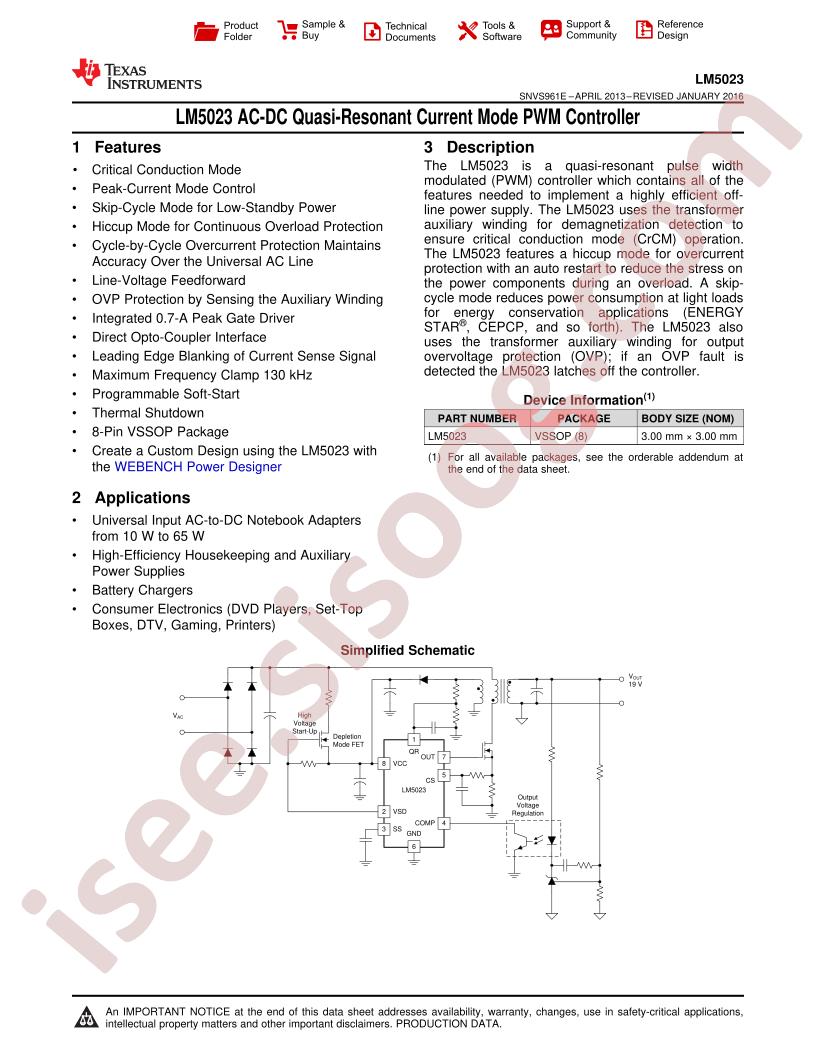

دانلود دیتاشیت LM5023 Datasheet

LM5023 Datasheet Datasheet

مشخصات

  • Duty Cycle: -
  • Output Isolation: Isolated
  • Topology: Flyback
  • Manufacturer: Texas Instruments
  • Frequency - Switching: 130kHz
  • Part Status: Active
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
  • Packaging: Cut Tape (CT)
  • Internal Switch(s): No
  • Fault Protection: Current Limiting, Over Voltage
  • Voltage - Breakdown: -
  • Series: -
  • Control Features: Soft Start
  • Supplier Device Package: 8-VSSOP
  • Mounting Type: Surface Mount
  • Base Part Number: LM5023
  • Voltage - Supply (Vcc/Vdd): 7.5V ~ 45V
  • Voltage - Start Up: 12.8V
  • detail: Converter Offline Flyback Topology 130kHz 8-VSSOP
