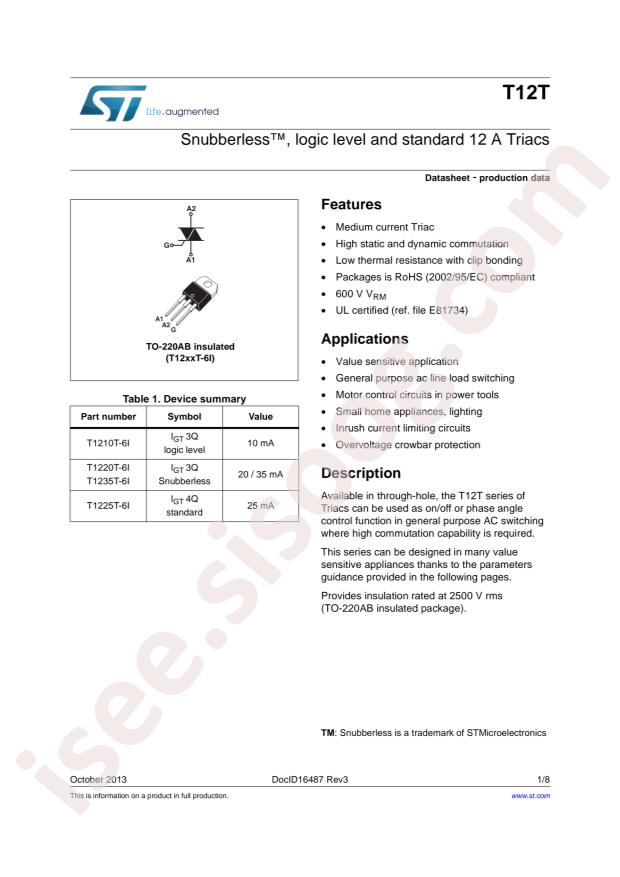

دیتاشیت T1210T-6I
مشخصات دیتاشیت
| نام دیتاشیت |
T12T
|
| حجم فایل |
192.635
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
8
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/TRIACs
-
SCR Type:
门极灵敏型-High Speed
-
Datasheet:
STMicroelectronics T1210T-6I
-
Holding Current (Ih):
10mA
-
Operating Temperature:
-40°C~+125°C@(Tj)
-
Gate Trigger Current(Igt):
10mA
-
Gate Trigger Voltage (Vgt):
1.3V
-
RMS On-State Current(It (rms)):
12A
-
Peak Repetitive Off?State Voltage (Vdrm):
600V
-
Package:
TO-220
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Triac Type:
Logic - Sensitive Gate
-
Voltage - Off State:
600V
-
Current - On State (It (RMS)) (Max):
12A
-
Voltage - Gate Trigger (Vgt) (Max):
1.3V
-
Current - Non Rep. Surge 50, 60Hz (Itsm):
90A, 95A
-
Current - Gate Trigger (Igt) (Max):
10mA
-
Current - Hold (Ih) (Max):
10mA
-
Configuration:
Single
-
Mounting Type:
Through Hole
-
Package / Case:
TO-220-3
-
Supplier Device Package:
TO-220AB
-
Base Part Number:
T1210
-
detail:
TRIAC Logic - Sensitive Gate 600V 12A Through Hole TO-220AB
