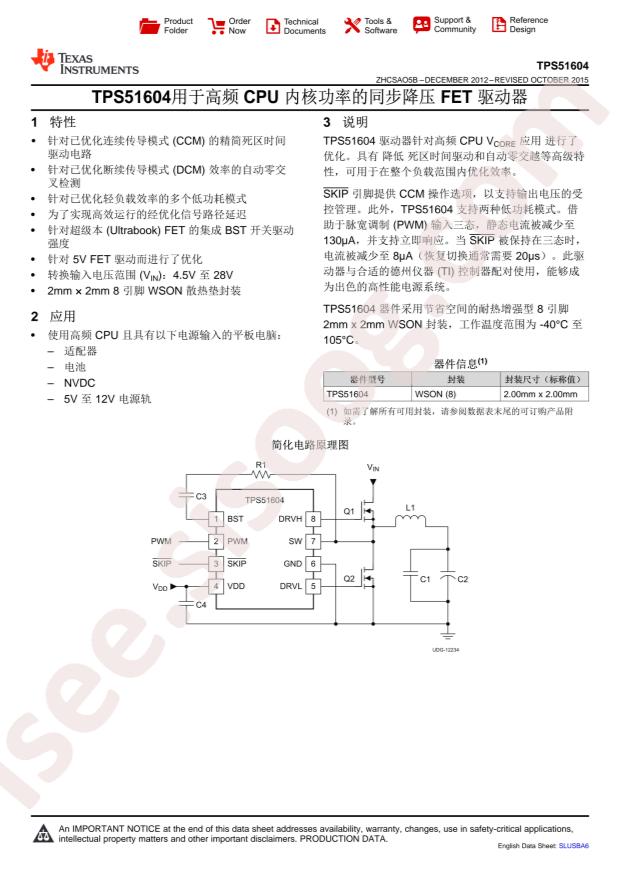

TPS51604DSGT دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPS51604DSGT
|
|
حجم فایل
|
73.167
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
29
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Gate Drive ICs
-
Datasheet:
Texas Instruments TPS51604DSGT
-
Fall Time:
8ns
-
Load Type:
MOSFET
-
Rise Time:
30ns
-
Supply Voltage:
4.5V~5.5V
-
Number of Drivers:
2
-
Driven Configuration:
Half Bridge
-
Operating Temperature:
-40°C~+105°C@(Tj)
-
Peak Output Current(sink):
-
-
Package:
DFN-8(2x2)
-
Manufacturer:
Texas Instruments
-
Channel Type:
Synchronous
-
Input Type:
Non-Inverting
-
Voltage - Supply:
4.5V ~ 5.5V
-
Series:
-
-
Mounting Type:
Surface Mount
-
Packaging:
Cut Tape (CT)
-
Supplier Device Package:
8-WSON (2x2)
-
Package / Case:
8-WFDFN Exposed Pad
-
Part Status:
Active
-
Logic Voltage - VIL, VIH:
0.6V, 2.65V
-
Rise / Fall Time (Typ):
30ns, 8ns
-
Gate Type:
N-Channel MOSFET
-
Base Part Number:
TPS516
-
High Side Voltage - Max (Bootstrap):
34V
-
Current - Peak Output (Source, Sink):
-
-
detail:
Half-Bridge Gate Driver IC Non-Inverting 8-WSON (2x2)
