- دیتاشیت STGP20NC60V
STGP20NC60V دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | STGP20NC60V |
|---|---|
| حجم فایل | 55.018 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 20 |
دانلود دیتاشیت STGP20NC60V |
دانلود دیتاشیت |
|---|
سایر مستندات

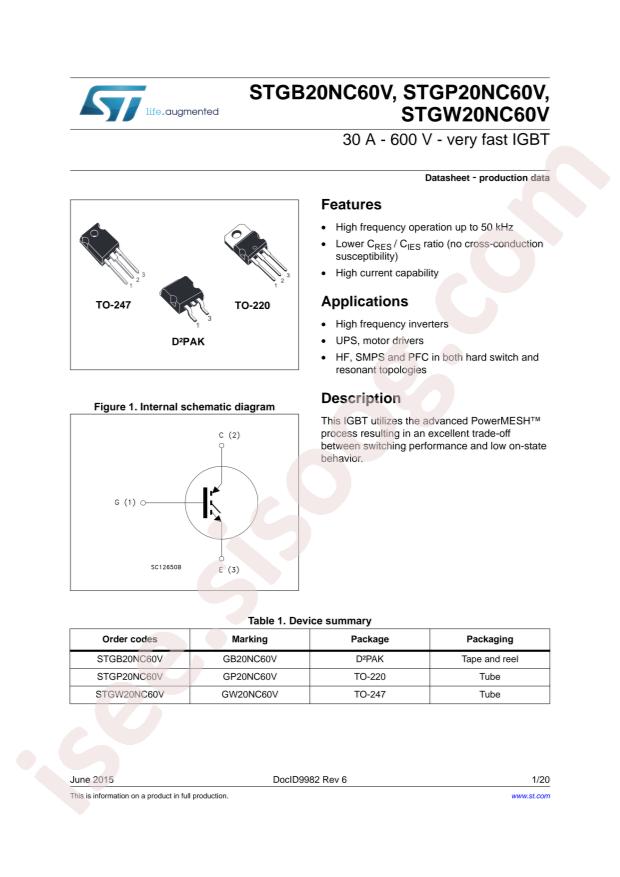

STG(B,P,W)20NC60V Datasheet 20 pages
مشخصات فنی
- RoHS: true
- Type: -
- Category: Triode/MOS Tube/Transistor/IGBTs
- Datasheet: STMicroelectronics STGP20NC60V
- Operating Temperature: -55°C~+150°C@(Tj)
- Collector Current (Ic): 60A
- Power Dissipation (Pd): 200W
- Input Capacitance (Cies@Vce): -
- Turn?on Switching Loss (Eon): 0.22mJ
- Pulsed Collector Current (Icm): 100A
- Turn?off Switching Loss (Eoff): 0.33mJ
- Collector-Emitter Breakdown Voltage (Vces): 600V
- Gate-Emitter Threshold Voltage (Vge(th)@Ic): -
- Package: TO-220
- Manufacturer: STMicroelectronics
- Series: PowerMESH™
- Packaging: Tube
- Part Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600V
- Current - Collector (Ic) (Max): 60A
- Current - Collector Pulsed (Icm): 100A
- Vce(on) (Max) @ Vge, Ic: 2.5V @ 15V, 20A
- Power - Max: 200W
- Switching Energy: 220µJ (on), 330µJ (off)
- Input Type: Standard
- Gate Charge: 100nC
- Td (on/off) @ 25°C: 31ns/100ns
- Test Condition: 390V, 20A, 3.3Ohm, 15V
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220AB
- Base Part Number: STGP20
- detail: IGBT 600V 60A 200W Through Hole TO-220AB
