دیتاشیت LM2574MX-3.3/NOPB

مشخصات دیتاشیت

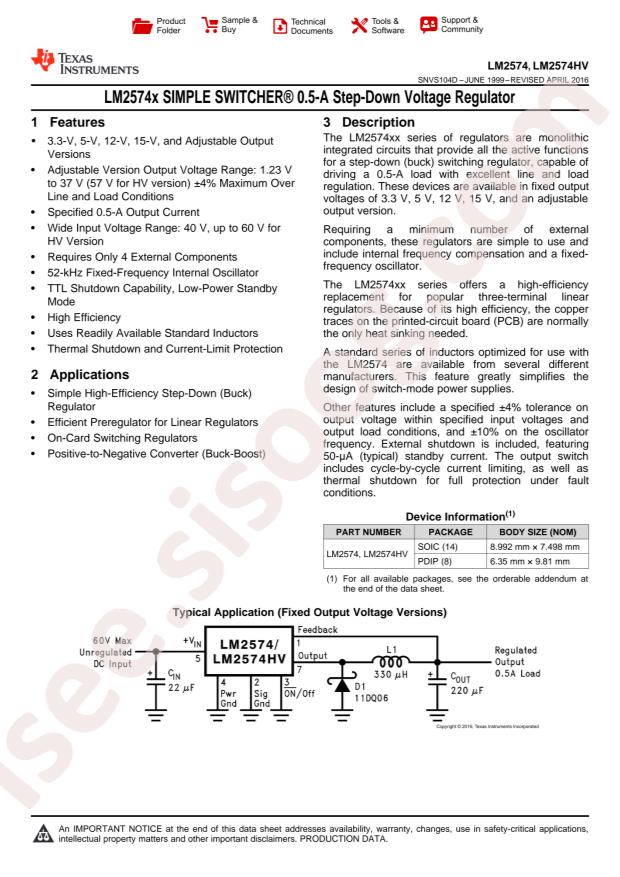

دانلود دیتاشیت LM2574/HV	LM2574/HV Datasheet

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: Texas Instruments LM2574MX-3.3/NOPB
Output Type: Fixed
Input Voltage: 4V~40V
Output Voltage: 3.3V
Number of Outputs: 1
Switching Frequency: 52kHz
Output Current (Max): 500mA
Operating Temperature: -40°C~+125°C@(TJ)
Synchronous Rectification: NO
Package: SOP-14--300mil
Manufacturer: Texas Instruments
Package / Case: 14-SOIC (0.295", 7.50mm Width)
Output Configuration: Positive
Base Part Number: LM2574
Packaging: Cut Tape (CT)
Frequency - Switching: 52kHz
Supplier Device Package: 14-SOIC
Part Status: Obsolete
Current - Output: 500mA
Series: SIMPLE SWITCHER®
Voltage - Input (Max): 40V
Synchronous Rectifier: No
Voltage - Output (Min/Fixed): 3.3V
Voltage - Input (Min): 4V
Mounting Type: Surface Mount
Voltage - Output (Max): -
detail: Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 500mA 14-SOIC (0.295", 7.50mm Width)
