LP5523TM/NOPB دیتاشیت

مشخصات دیتاشیت

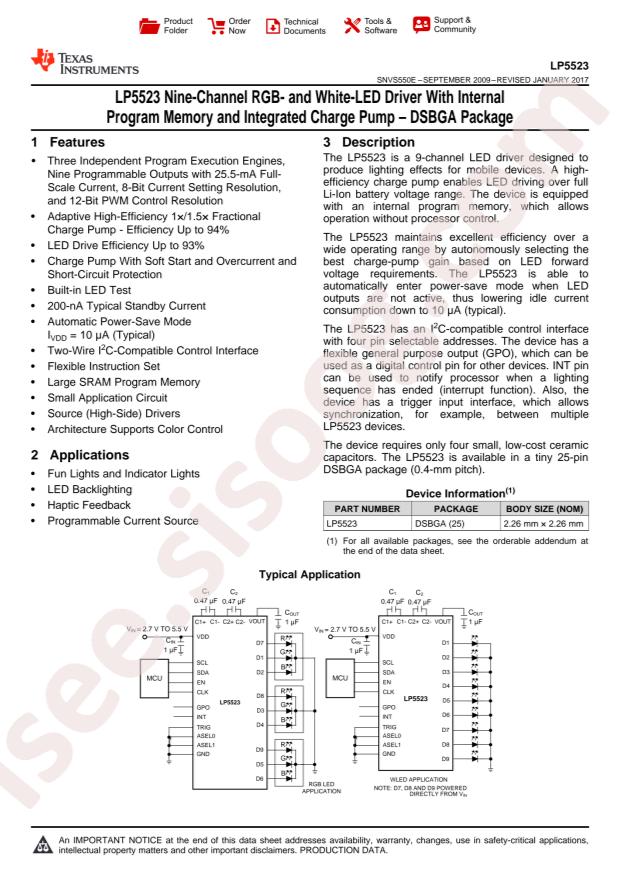

مشاهده دیتاشیت LP5523TM/NOPB	دانلود دیتاشیت

LP5523 61 pages

RoHS: true
Type: DC-DCVoltage Stabilizer
Dimming: PWM
Category: Nixie Tube Driver/LED Driver/LED Drivers
Channels: 9
Topology: Switched capacitor(充电泵)
Datasheet: Texas Instruments LP5523TM/NOPB
Input Voltage: 2.7V~5.5V
Output Current: 25.5mA
Operating temperature: -30°C~+85°C
Package: BGA-25
Manufacturer: Texas Instruments
Internal Switch(s): Yes
Voltage - Output: -
Voltage - Supply (Max): 5.5V
Part Status: Active
Applications: Backlight
Voltage - Supply (Min): 2.7V
Package / Case: 25-WFBGA
Frequency: -
Packaging: Cut Tape (CT)
Series: -
Base Part Number: LP5523
Supplier Device Package: 25-µSMD (2.27x2.27)
Mounting Type: Surface Mount
Number of Outputs: 9
Current - Output / Channel: 25.5mA
detail: LED Driver IC 9 Output DC DC Regulator Switched Capacitor (Charge Pump) PWM Dimming 25.5mA 25-µSMD (2.27x2.27)
