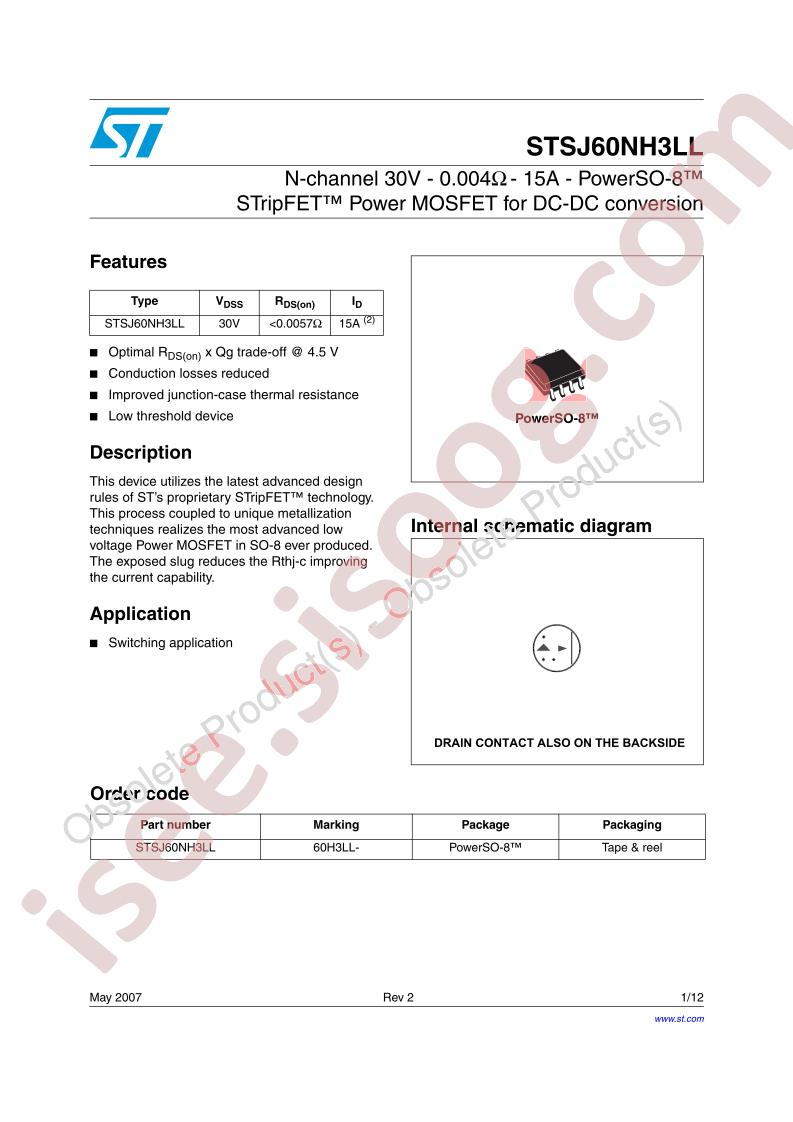

STSJ60NH3LL دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STSJ60NH3LL
|
|
حجم فایل
|
365.926
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
12
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
STripFET™
-
Packaging:
Cut Tape (CT)
-
Part Status:
Obsolete
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
30V
-
Current - Continuous Drain (Id) @ 25°C:
60A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Rds On (Max) @ Id, Vgs:
5.7mOhm @ 7.5A, 10V
-
Vgs(th) (Max) @ Id:
1V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
24nC @ 4.5V
-
Vgs (Max):
±16V
-
Input Capacitance (Ciss) (Max) @ Vds:
1810pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
3W (Ta), 50W (Tc)
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
8-SOIC-EP
-
Package / Case:
8-SOIC (0.154", 3.90mm Width) Exposed Pad
-
Base Part Number:
STSJ60
-
detail:
N-Channel 30V 60A (Tc) 3W (Ta), 50W (Tc) Surface Mount 8-SOIC-EP
