دیتاشیت T810H-6G-TR

T810H

مشخصات دیتاشیت

نام دیتاشیت T810H
حجم فایل 119.812 کیلوبایت
نوع فایل pdf
تعداد صفحات 10

دانلود دیتاشیت T810H

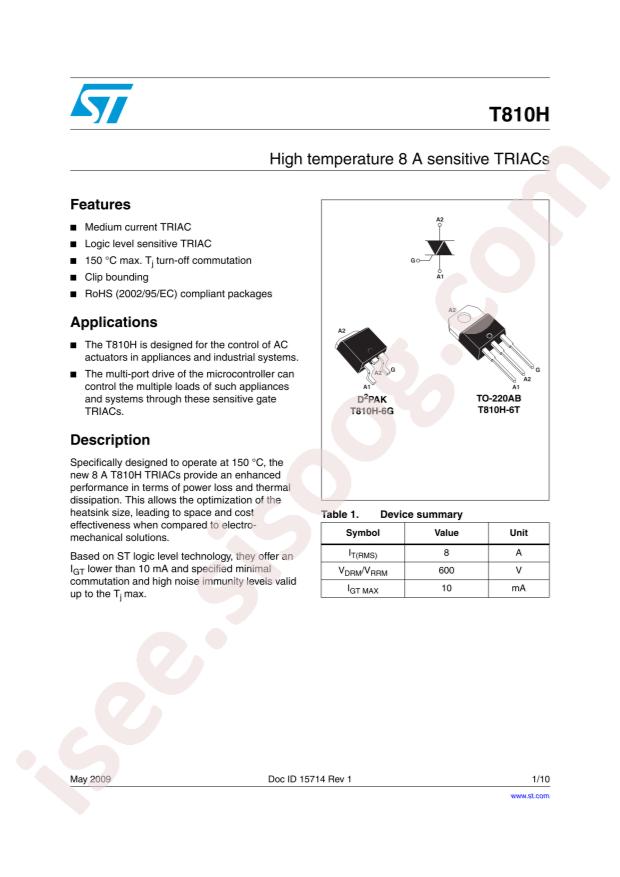

T810H Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Discontinued at Digi-Key
  • Triac Type: Logic - Sensitive Gate
  • Voltage - Off State: 600V
  • Current - On State (It (RMS)) (Max): 8A
  • Voltage - Gate Trigger (Vgt) (Max): 1V
  • Current - Non Rep. Surge 50, 60Hz (Itsm): 80A, 84A
  • Current - Gate Trigger (Igt) (Max): 10mA
  • Current - Hold (Ih) (Max): 25mA
  • Configuration: Single
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
  • Supplier Device Package: D2PAK
  • Base Part Number: T810
  • detail: TRIAC Logic - Sensitive Gate 600V 8A Surface Mount D2PAK
