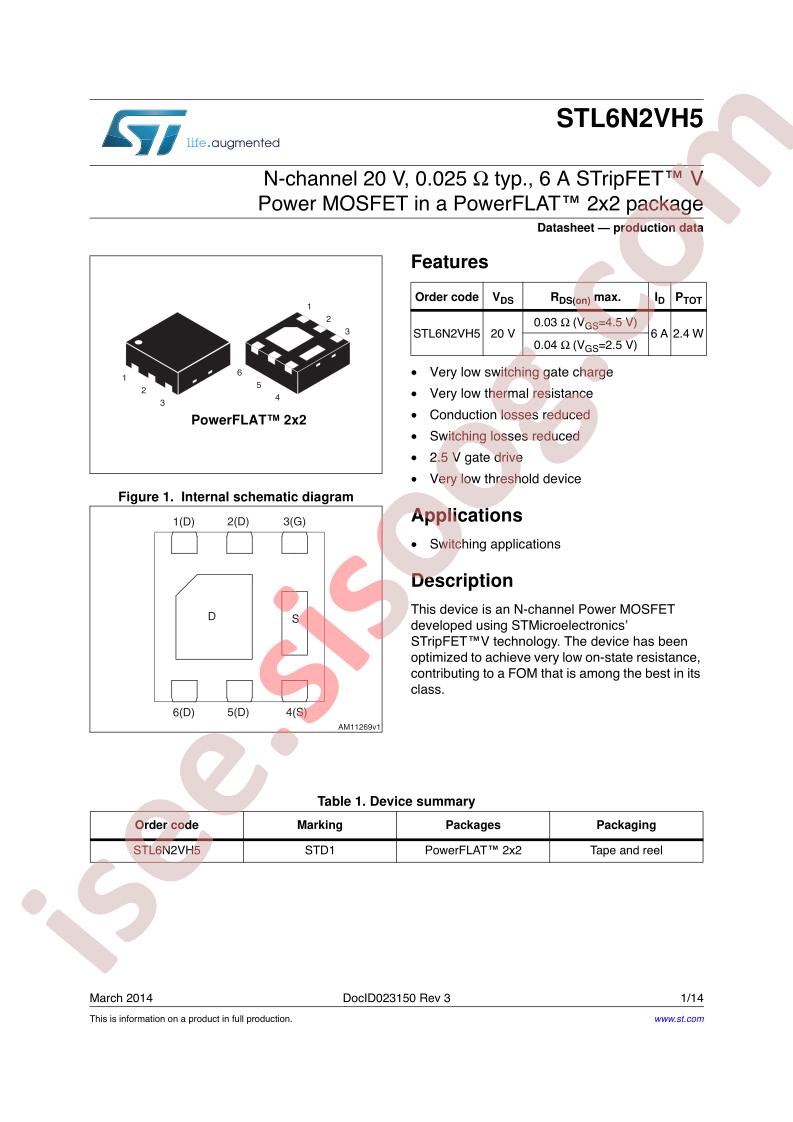

STL6N2VH5 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STL6N2VH5
|
|
حجم فایل
|
912.506
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
14
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
STripFET™ V
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
20V
-
Current - Continuous Drain (Id) @ 25°C:
-
-
Drive Voltage (Max Rds On, Min Rds On):
2.5V, 4.5V
-
Rds On (Max) @ Id, Vgs:
30mOhm @ 3A, 4.5V
-
Vgs(th) (Max) @ Id:
700mV @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
6nC @ 4.5V
-
Vgs (Max):
±8V
-
Input Capacitance (Ciss) (Max) @ Vds:
550pF @ 16V
-
FET Feature:
-
-
Power Dissipation (Max):
2.4W (Tc)
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
PowerFlat™ (2x2)
-
Package / Case:
6-PowerWDFN
-
Base Part Number:
STL6
-
detail:
N-Channel 20V 2.4W (Tc) Surface Mount PowerFlat™ (2x2)
