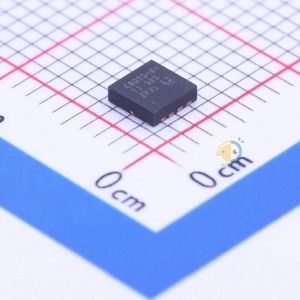

CSD25404Q3T دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | CSD25404Q3T |
|---|---|
| حجم فایل | 91.216 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 13 |
دانلود دیتاشیت CSD25404Q3T |
دانلود دیتاشیت |
|---|
سایر مستندات

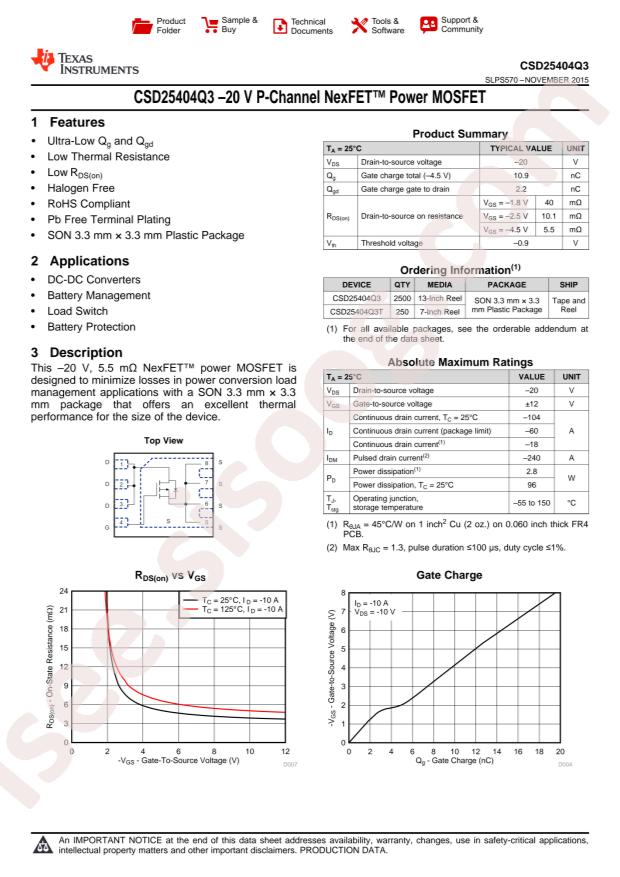

CSD25404Q3 Datasheet 13 pages
مشخصات فنی
- RoHS: true
- Type: P Channel
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: Texas Instruments CSD25404Q3T
- Power Dissipation (Pd): 96W
- Drain Source Voltage (Vdss): 20V
- Continuous Drain Current (Id): 104A
- Gate Threshold Voltage (Vgs(th)@Id): 1.15V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id): 6.5mΩ@4.5V,10A
- Package: VSON-CLIP-8(3.3x3.3)
- Manufacturer: Texas Instruments
- Power Dissipation (Max): 2.8W (Ta), 96W (Tc)
- Drain to Source Voltage (Vdss): 20V
- Rds On (Max) @ Id, Vgs: 6.5mOhm @ 10A, 4.5V
- Vgs (Max): ±12V
- FET Type: P-Channel
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Technology: MOSFET (Metal Oxide)
- Current - Continuous Drain (Id) @ 25°C: 104A (Tc)
- FET Feature: -
- Input Capacitance (Ciss) (Max) @ Vds: 2120pF @ 10V
- Operating Temperature: -55°C ~ 150°C (TJ)
- Packaging: Cut Tape (CT)
- Package / Case: 8-PowerVDFN
- Part Status: Active
- Series: NexFET™
- Vgs(th) (Max) @ Id: 1.15V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 14.1nC @ 4.5V
- Supplier Device Package: 8-VSON (3.3x3.3)
- Mounting Type: Surface Mount
- Base Part Number: CSD2540
- detail: P-Channel 20V 104A (Tc) 2.8W (Ta), 96W (Tc) Surface Mount 8-VSON (3.3x3.3)
