LP5912Q1.2DRVTQ1 دیتاشیت

LP5912Q1.2DRVTQ1

مشخصات دیتاشیت

نام دیتاشیت LP5912Q1.2DRVTQ1
حجم فایل 79.309 کیلوبایت
نوع فایل pdf
تعداد صفحات 34

دانلود دیتاشیت LP5912Q1.2DRVTQ1

دانلود دیتاشیت

سایر مستندات

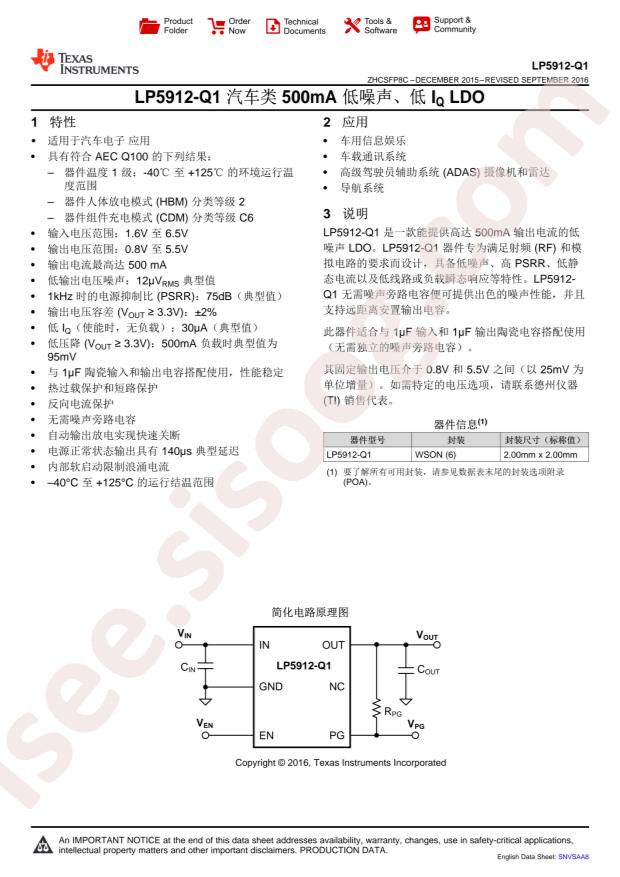

LP5912-Q1 Datasheet 34 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Texas Instruments LP5912Q1.2DRVTQ1
  • Output Current: 500mA
  • Output Voltage: 1.2V
  • Output Polarity: positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 6.5V
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Quiescent Current (Ground Current): 55uA
  • Package: DFN-6(2x2)
  • Manufacturer: Texas Instruments
  • Current - Supply (Max): 600µA
  • Output Configuration: Positive
  • Package / Case: 6-WDFN Exposed Pad
  • Packaging: Cut Tape (CT)
  • Protection Features: Over Temperature, Reverse Polarity, Short Circuit
  • Number of Regulators: 1
  • Part Status: Active
  • Current - Quiescent (Iq): 55µA
  • Supplier Device Package: 6-WSON (2x2)
  • Voltage - Input (Max): 6.5V
  • Voltage - Output (Min/Fixed): 1.2V
  • Mounting Type: Surface Mount
  • PSRR: 80dB ~ 40db (100Hz ~ 100kHz)
  • Base Part Number: LP5912
  • Series: Automotive, AEC-Q100
  • Output Type: Fixed
  • Control Features: Enable, Power Good, Soft Start
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): -
  • Current - Output: 500mA
  • detail: Linear Voltage Regulator IC 1 Output 500mA 6-WSON (2x2)
