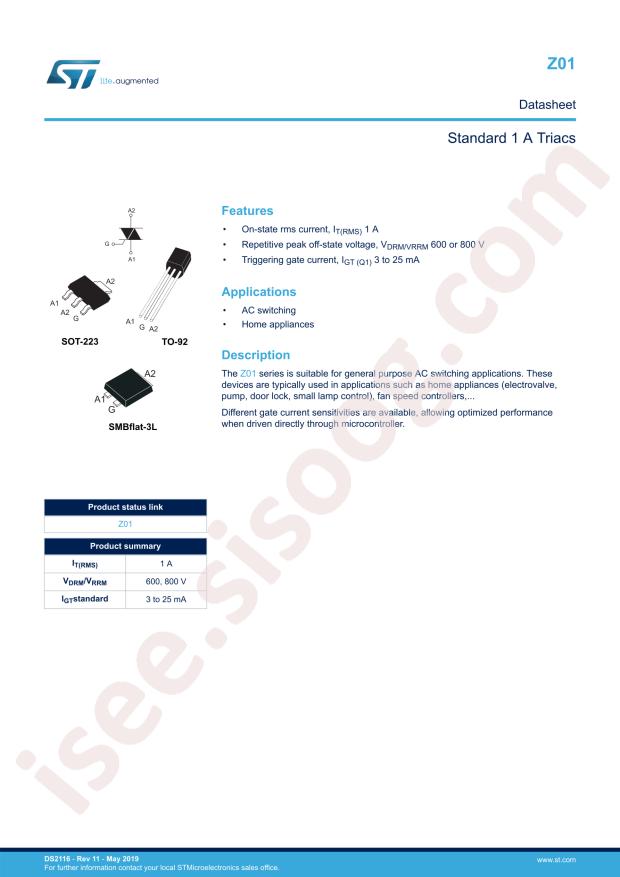

Z0109MN 5AA4 Datasheet
Datasheet specifications
|
Datasheet's name
|
Z0109MN 5AA4
|
|
File size
|
41.463
KB
|
|
File type
|
pdf
|
|
Number of pages
|
16
|
Technical specifications
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/TRIACs
-
SCR Type:
门极灵敏型-High Speed
-
Datasheet:
STMicroelectronics Z0109MN 5AA4
-
Holding Current (Ih):
10mA
-
Operating Temperature:
-40°C~+125°C@(Tj)
-
Gate Trigger Current(Igt):
10mA
-
Gate Trigger Voltage (Vgt):
1.3V
-
RMS On-State Current(It (rms)):
1A
-
Peak Repetitive Off?State Voltage (Vdrm):
600V
-
Package:
TO-261-4
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Triac Type:
Logic - Sensitive Gate
-
Voltage - Off State:
600V
-
Current - On State (It (RMS)) (Max):
1A
-
Voltage - Gate Trigger (Vgt) (Max):
1.3V
-
Current - Non Rep. Surge 50, 60Hz (Itsm):
8A, 8.5A
-
Current - Gate Trigger (Igt) (Max):
10mA
-
Current - Hold (Ih) (Max):
10mA
-
Configuration:
Single
-

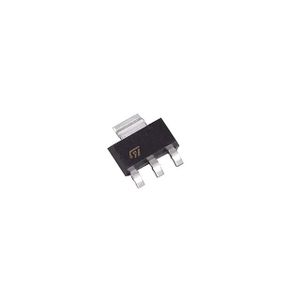

Mounting Type:
Surface Mount
-
Package / Case:
TO-261-4, TO-261AA
-
Supplier Device Package:
SOT-223
-
Base Part Number:
Z0109
-
detail:
TRIAC Logic - Sensitive Gate 600V 1A Surface Mount SOT-223
