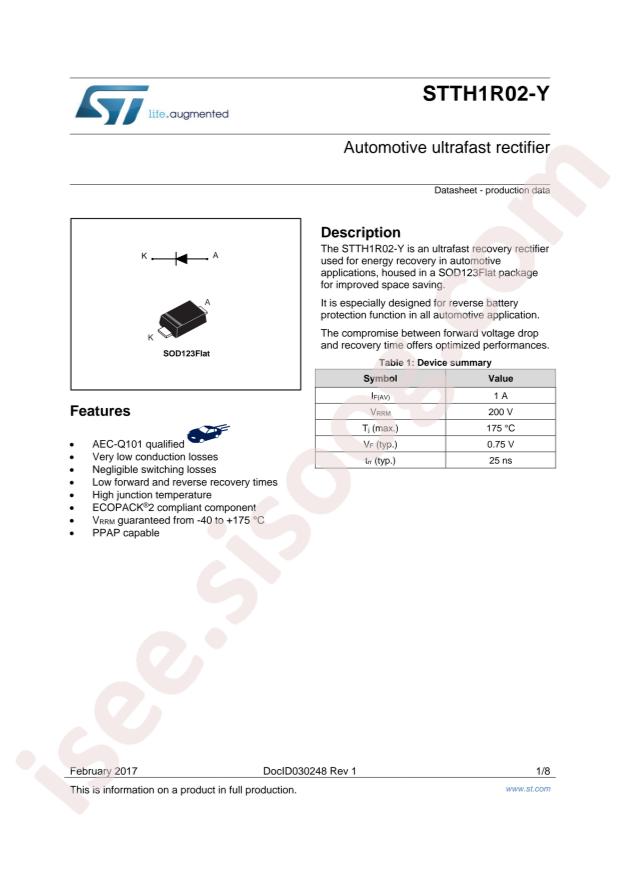

STTH1R02ZFY دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STTH1R02ZFY
|
|
حجم فایل
|
47.417
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
RoHS:
true
-
Category:
Diodes/Diodes - Fast Recovery Rectifiers
-
Datasheet:
STMicroelectronics STTH1R02ZFY
-
Diode Configuration:
Single
-
Reverse Voltage (Vr):
200V
-
Operating Temperature:
-40°C~+175°C@(Tj)
-
Forward Voltage (Vf@If):
870mV@1A
-
Reverse Leakage Current:
500nA@200V
-
Reverse Recovery Time (trr):
25ns
-
Average Rectified Current (Io):
1A
-

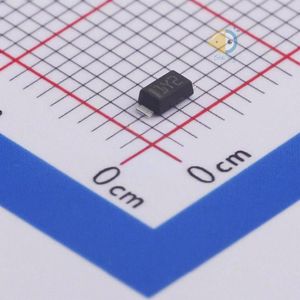

Package:
SOD-123F
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Diode Type:
Standard
-
Voltage - DC Reverse (Vr) (Max):
200V
-
Current - Average Rectified (Io):
1.5A
-
Voltage - Forward (Vf) (Max) @ If:
1V @ 1.5A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
3µA @ 200V
-
Capacitance @ Vr, F:
-
-
Mounting Type:
Through Hole
-
Package / Case:
DO-204AL, DO-41, Axial
-
Supplier Device Package:
DO-41
-
Operating Temperature - Junction:
175°C (Max)
-
Base Part Number:
STTH1
-
detail:
Diode Standard 200V 1.5A Through Hole DO-41
