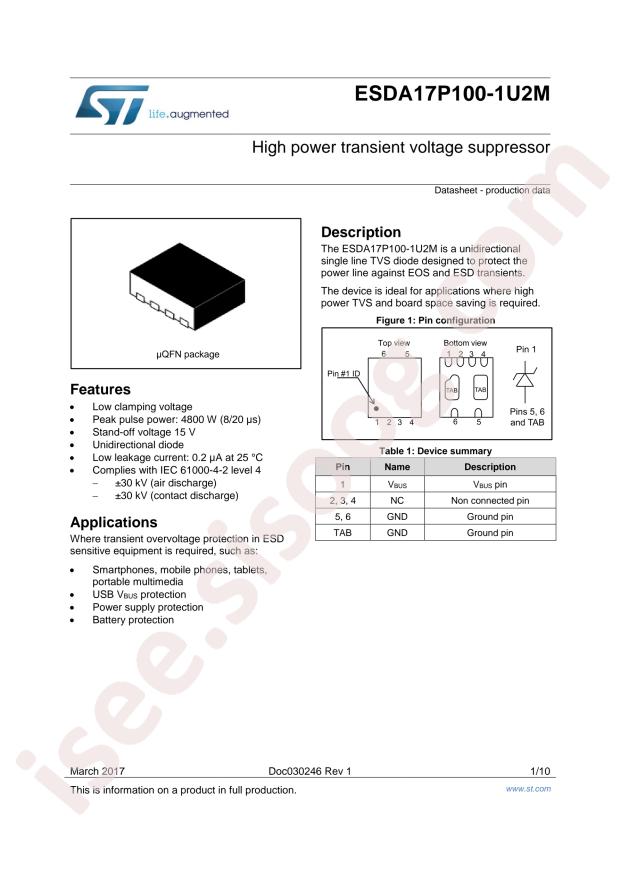

ESDA17P100-1U2M دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | ESDA17P100-1U2M |
|---|---|
| حجم فایل | 61.663 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 10 |
دانلود دیتاشیت ESDA17P100-1U2M |
دانلود دیتاشیت |
|---|
سایر مستندات
Power over Ethernet Proctection Flyer 2 pages
ST Protection Finder App Flyer 2 pages
ESDA17P100-1U2M Datasheet 10 pages
Power Delivery Protection Flyer 2 pages
ESDA17P100-1U2M 10 pages
مشخصات فنی
- RoHS: true
- Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
- Datasheet: STMicroelectronics ESDA17P100-1U2M
- Number of Lines: 1
- Clamping Voltage@Ipp: 30V
- Operating Temperature: -55°C~+150°C@(Tj)
- Breakdown Voltage (VBR): 15.7V
- Peak Pulse Power(Ppp)@8/20us: 4.8kW
- Junction Capacitance(Cj)@1MHz: 1200pF@1MHz
- Peak Pulse Current(Ipp)@8/20us: 160A@(8/20us)
- Reverse Stand-Off Voltage (Vrwm): 15V
- Package: UQFN-6(1.8x2)
- Manufacturer: STMicroelectronics
- Series: ESDA
- Packaging: Cut Tape (CT)
- Part Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 15V (Max)
- Voltage - Breakdown (Min): 15.7V
- Voltage - Clamping (Max) @ Ipp: 30V
- Current - Peak Pulse (10/1000µs): 160A (8/20µs)
- Power - Peak Pulse: 4800W (4.8kW)
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 1200pF @ 1MHz
- Mounting Type: Surface Mount
- Package / Case: 6-UFDFN Exposed Pad
- Supplier Device Package: 6-µQFN (1.8x2)
- Base Part Number: ESDA17
- detail: 30V Clamp 160A (8/20µs) Ipp Tvs Diode Surface Mount 6-µQFN (1.8x2)
