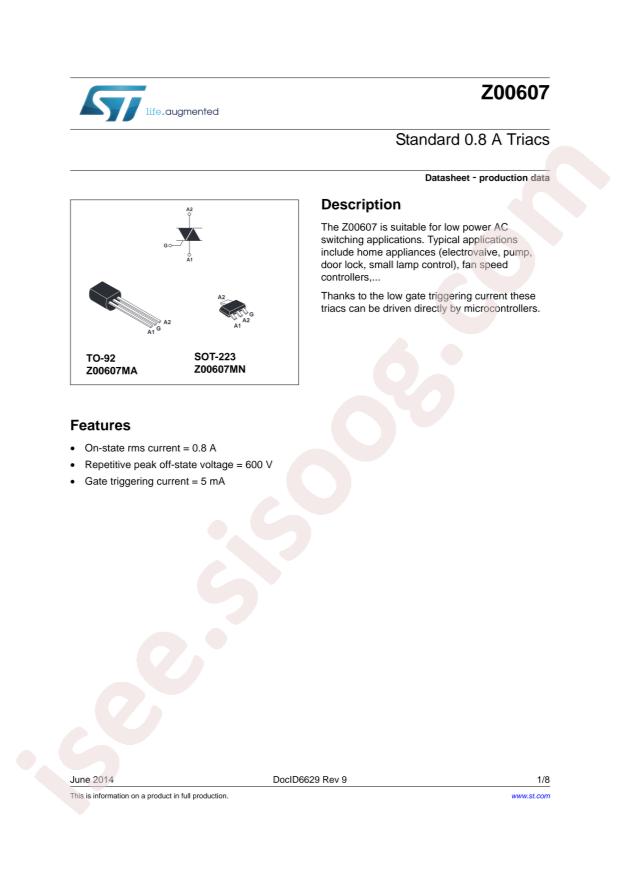

دیتاشیت Z00607MA 5BL2
مشخصات دیتاشیت
| نام دیتاشیت |
Z00607
|
| حجم فایل |
147.062
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
8
|
مشخصات
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/TRIACs
-
SCR Type:
门极灵敏型-High Speed
-
Datasheet:
STMicroelectronics Z00607MA 5BL2
-
Holding Current (Ih):
5mA
-
Operating Temperature:
-40°C~+110°C@(Tj)
-
Gate Trigger Current(Igt):
5mA
-
Gate Trigger Voltage (Vgt):
1.3V
-
RMS On-State Current(It (rms)):
800mA
-
Peak Repetitive Off?State Voltage (Vdrm):
600V
-
Package:
TO-92
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Triac Type:
Logic - Sensitive Gate
-
Voltage - Off State:
600V
-
Current - On State (It (RMS)) (Max):
800mA
-
Voltage - Gate Trigger (Vgt) (Max):
1.3V
-
Current - Non Rep. Surge 50, 60Hz (Itsm):
9A, 9.5A
-
Current - Gate Trigger (Igt) (Max):
5mA
-
Current - Hold (Ih) (Max):
5mA
-
Configuration:
Single
-
Mounting Type:
Through Hole
-
Package / Case:
TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
-
Supplier Device Package:
TO-92-3
-
Base Part Number:
Z00607
-
detail:
TRIAC Logic - Sensitive Gate 600V 800mA Through Hole TO-92-3
