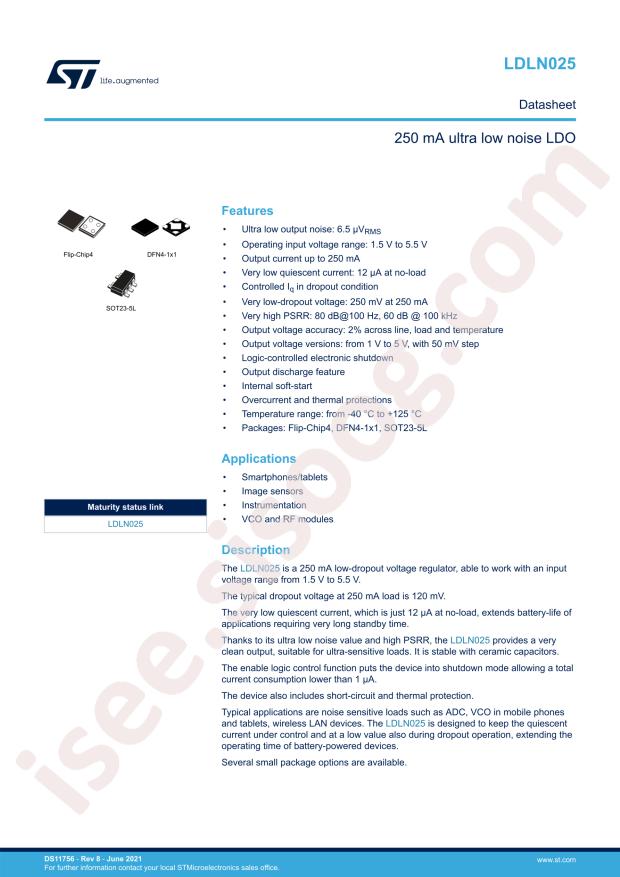

- دیتاشیت LDLN025J12R
LDLN025J12R دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | LDLN025J12R |
|---|---|
| حجم فایل | 65.332 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 27 |
دانلود دیتاشیت LDLN025J12R |
دانلود دیتاشیت |
|---|
سایر مستندات
Power Management Handheld,Portable Guide 12 pages
LDLN025 27 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: STMicroelectronics LDLN025J12R
- Output Current: 250mA
- Output Voltage: 1.2V
- Dropout Voltage: 0.2V@(250mA)
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 5.5V
- Operating Temperature: -40°C~+125°C@(Tj)
- Quiescent Current (Ground Current): 25uA
- Package: FCBGA
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 1.2V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.2V @ 250mA
- Current - Output: 250mA
- Current - Quiescent (Iq): 25µA
- Current - Supply (Max): 425µA
- PSRR: 80dB ~ 60dB (100Hz ~ 100KHz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature, Short Circuit, Soft Start
- Mounting Type: Surface Mount
- Package / Case: 4-XFBGA, FCBGA
- Supplier Device Package: 4-FlipChip (0.63x0.63)
- Base Part Number: LDLN025
- detail: Linear Voltage Regulator IC 1 Output 250mA 4-FlipChip (0.63x0.63)
