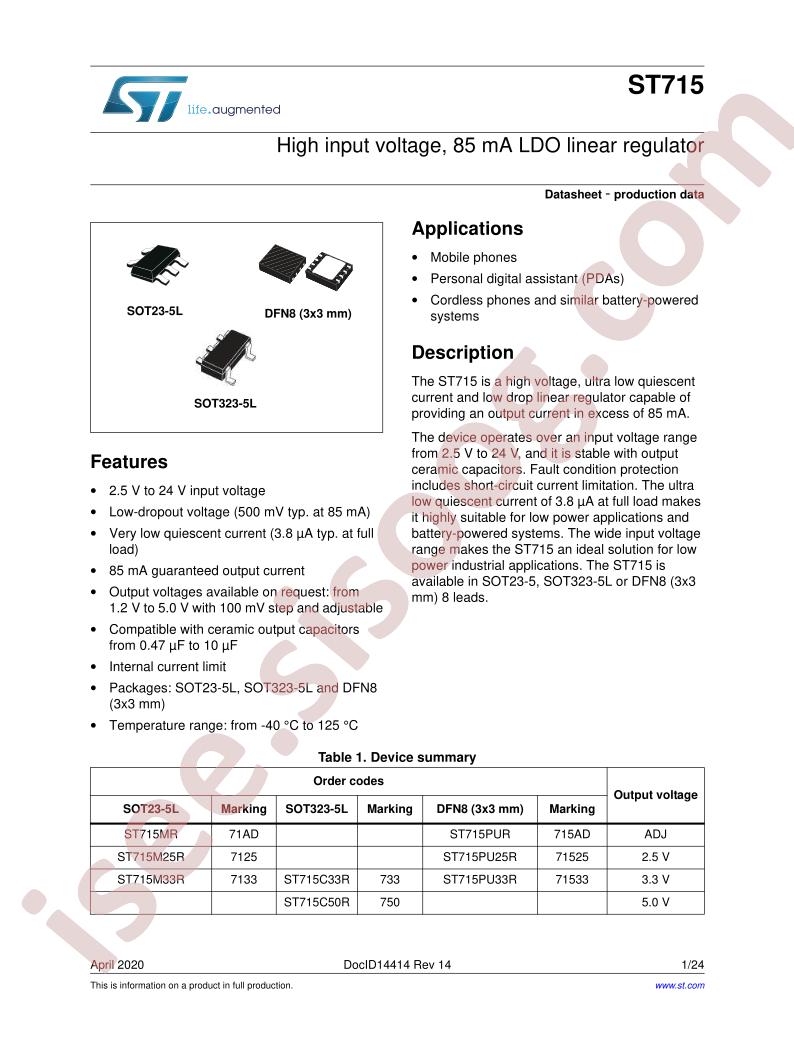

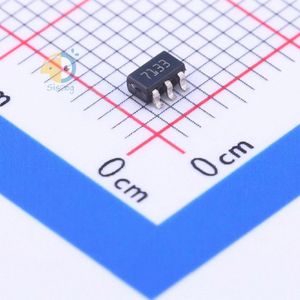

ST715xx دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
ST715xx
|
|
حجم فایل
|
612.891
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
24
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
STMicroelectronics ST715M25R
-
Output Current:
85mA
-
Output Voltage:
2.5V
-
Dropout Voltage:
1V@(85mA)
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
24V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
5.5uA
-
Package:
SOT-23-5
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Output Type:
Fixed
-
Number of Regulators:
1
-
Voltage - Input (Max):
24V
-
Voltage - Output (Min/Fixed):
2.5V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
1V @ 85mA
-
Current - Output:
85mA
-
Current - Quiescent (Iq):
5.5µA
-
Current - Supply (Max):
6.5µA
-
PSRR:
57dB ~ 38dB (100kHz ~ 1kHz)
-
Control Features:
-
-
Protection Features:
Over Current, Over Temperature
-
Mounting Type:
Surface Mount
-
Package / Case:
SC-74A, SOT-753
-
Supplier Device Package:
SOT-23-5
-
Base Part Number:
ST715
-
detail:
Linear Voltage Regulator IC 1 Output 85mA SOT-23-5
