TPS84210RKGR دیتاشیت

مشخصات دیتاشیت

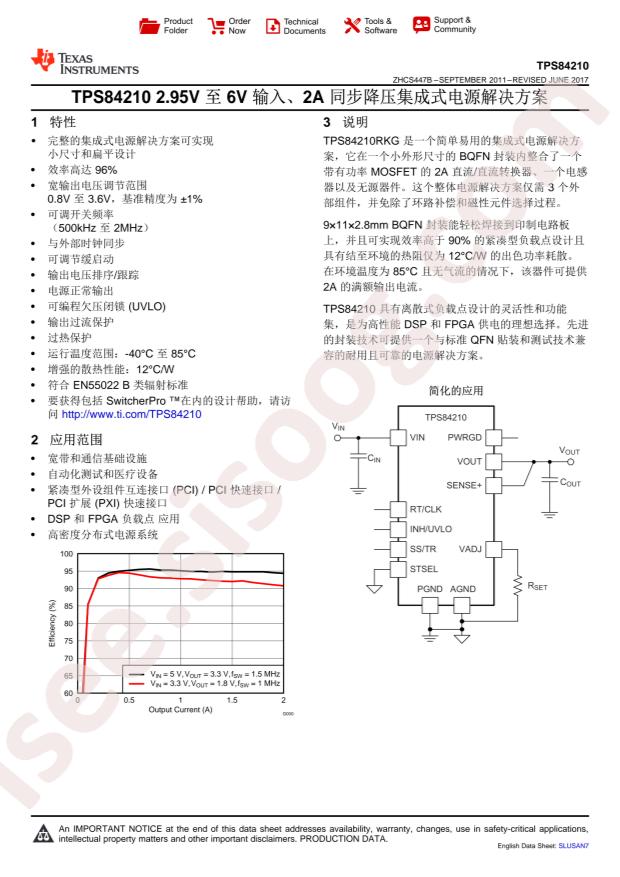

مشاهده دیتاشیت TPS84210RKGR	دانلود دیتاشیت

TPS84210 32 pages

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: Texas Instruments TPS84210RKGR
Output Type: Adjustable
Input Voltage: 2.95V~6V
Output Voltage: 0.8V~3.6V
Number of Outputs: 1
Switching Frequency: 2MHz
Output Current (Max): 2A
Operating Temperature: -40°C~+85°C@(TA)
Synchronous Rectification: Yes

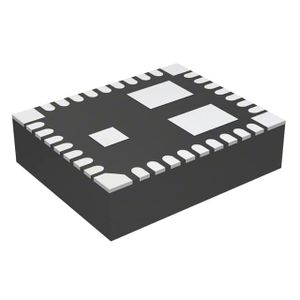

Package: B1QFN-39
Manufacturer: Texas Instruments
Current - Output: 2A
Voltage - Input (Max): 6V
Frequency - Switching: 500kHz ~ 2MHz
Part Status: Active
Base Part Number: TPS842
Voltage - Output (Min/Fixed): 0.8V
Package / Case: 39-BQFN Exposed Pad
Series: -
Packaging: Cut Tape (CT)
Synchronous Rectifier: Yes
Output Configuration: Positive
Voltage - Output (Max): 3.6V
Mounting Type: Surface Mount
Supplier Device Package: 39-B1QFN-EP (11x9)
Voltage - Input (Min): 2.95V
detail: Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 2A 39-BQFN Exposed Pad
