TPS53313RGET دیتاشیت

مشخصات دیتاشیت

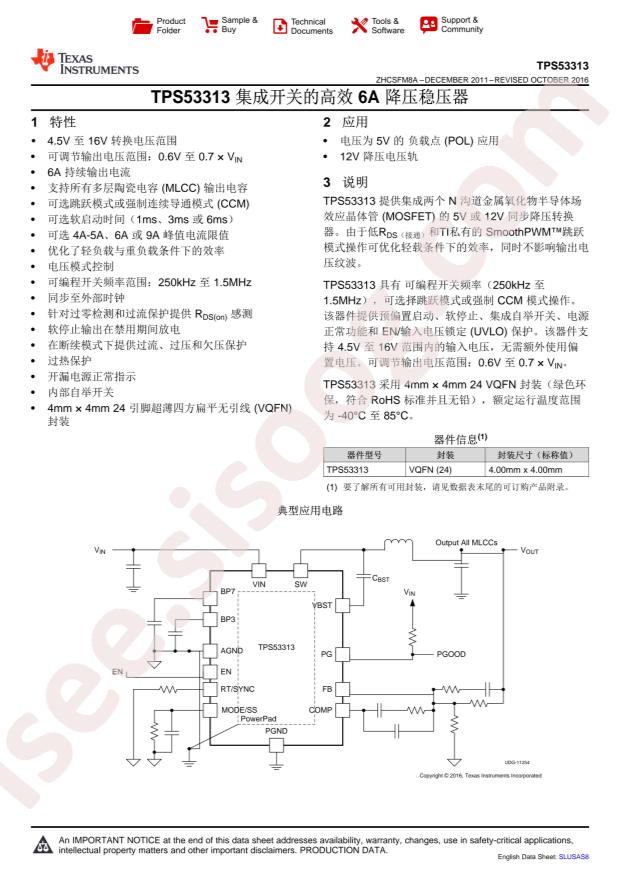

دانلود دیتاشیت TPS53313RGET	دانلود دیتاشیت

TPS53313 30 pages

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: Texas Instruments TPS53313RGET
Output Type: Adjustable
Input Voltage: 4.5V~16V
Output Voltage: 0.6V~11.2V
Number of Outputs: 1
Switching Frequency: 1.5MHz
Output Current (Max): 6A
Operating Temperature: -40°C~+85°C@(TA)
Synchronous Rectification: Yes
Package: VQFN-24-EP(4x4)
Manufacturer: Texas Instruments
Current - Output: 6A
Voltage - Input (Max): 16V
Frequency - Switching: 250kHz ~ 1.5MHz
Part Status: Active
Base Part Number: TPS533
Voltage - Output (Min/Fixed): 0.6V
Package / Case: 24-VFQFN Exposed Pad
Series: SmoothPWM™
Packaging: Cut Tape (CT)
Synchronous Rectifier: Yes
Output Configuration: Positive
Voltage - Output (Max): 11.2V
Mounting Type: Surface Mount
Supplier Device Package: 24-VQFN (4x4)
Voltage - Input (Min): 4.5V
detail: Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 6A 24-VFQFN Exposed Pad
