STPS15L60CB-TR دیتاشیت

STPS15L60CB-TR

مشخصات دیتاشیت

نام دیتاشیت STPS15L60CB-TR
حجم فایل 44.487 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

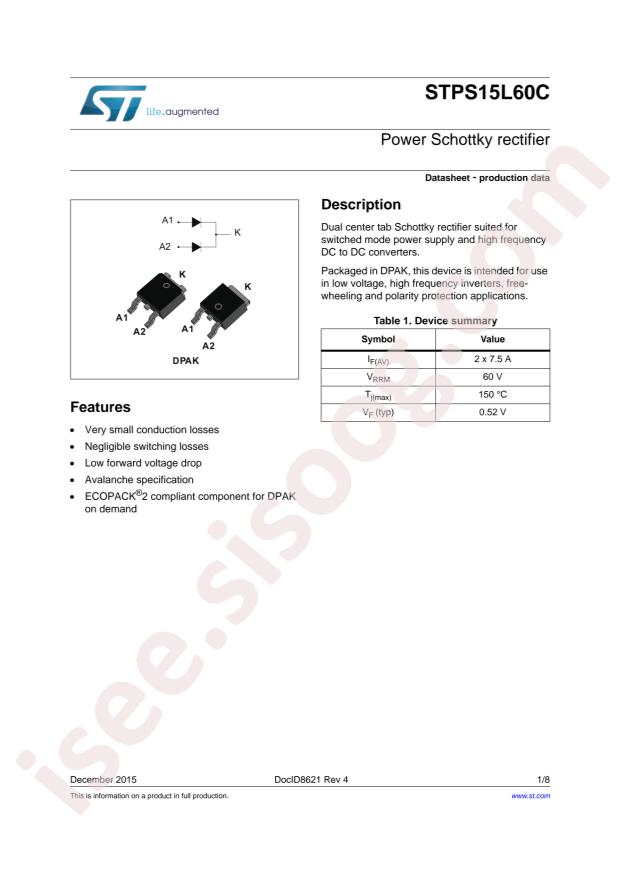

مشاهده دیتاشیت STPS15L60CB-TR

دانلود دیتاشیت

سایر مستندات

STPS15L60CB 8 pages

مشخصات فنی

  • RoHS: true
  • Category: Diodes/Schottky Barrier Diodes (SBD)
  • Datasheet: STMicroelectronics STPS15L60CB-TR
  • Reverse Voltage (Vr): 60V
  • Forward Voltage (Vf@If): 620mV@7.5A
  • Average Rectified Current (Io): 7.5A
  • Package: TO-252-2(DPAK)
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Diode Configuration: 1 Pair Common Cathode
  • Diode Type: Schottky
  • Voltage - DC Reverse (Vr) (Max): 60V
  • Current - Average Rectified (Io) (per Diode): 7.5A
  • Voltage - Forward (Vf) (Max) @ If: 620mV @ 7.5A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Current - Reverse Leakage @ Vr: 200µA @ 60V
  • Operating Temperature - Junction: 150°C (Max)
  • Mounting Type: Surface Mount
  • Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Supplier Device Package: DPAK
  • Base Part Number: STPS15
  • detail: Diode Array 1 Pair Common Cathode Schottky 60V 7.5A Surface Mount TO-252-3, DPak (2 Leads + Tab), SC-63
