BULD742CT4 دیتاشیت

BULD742CT4

مشخصات دیتاشیت

نام دیتاشیت BULD742CT4
حجم فایل 52.051 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

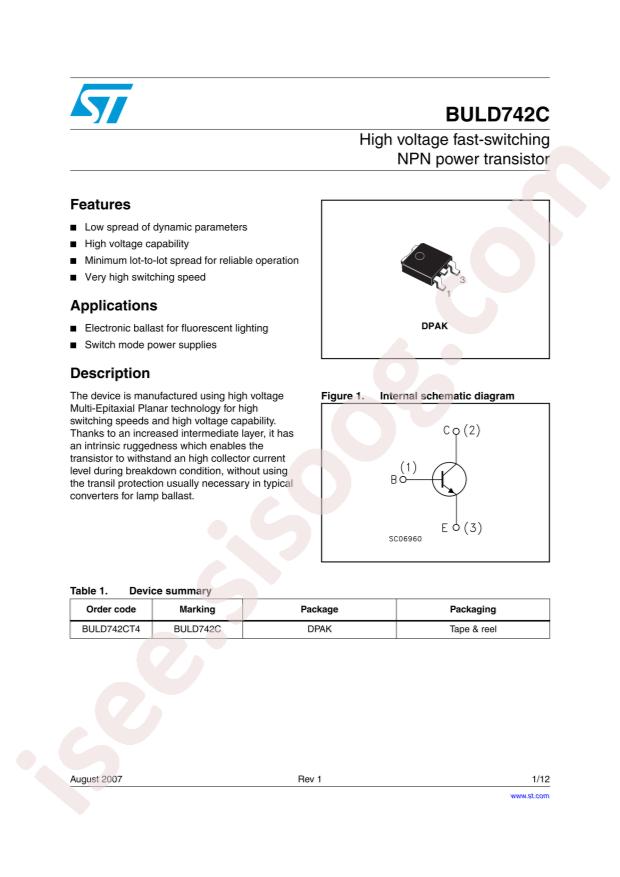

مشاهده دیتاشیت BULD742CT4

دانلود دیتاشیت

سایر مستندات

BULD742C 12 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
  • Datasheet: STMicroelectronics BULD742CT4
  • Transistor Type: NPN
  • Operating Temperature: +150°C@(Tj)
  • Collector Current (Ic): 4A
  • Power Dissipation (Pd): 45W
  • Transition Frequency (fT): -
  • DC Current Gain (hFE@Ic,Vce): 25@800mA,3V
  • Collector Cut-Off Current (Icbo): 250uA
  • Collector-Emitter Breakdown Voltage (Vceo): 400V
  • Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 600mV@3.5A,1A
  • Package: TO-252-2(DPAK)
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Current - Collector (Ic) (Max): 4A
  • Voltage - Collector Emitter Breakdown (Max): 400V
  • Vce Saturation (Max) @ Ib, Ic: 1.5V @ 1A, 3.5A
  • Current - Collector Cutoff (Max): 250µA
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 25 @ 800mA, 3V
  • Power - Max: 45W
  • Frequency - Transition: -
  • Mounting Type: Surface Mount
  • Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Supplier Device Package: DPAK
  • Base Part Number: BULD742
  • detail: Bipolar (BJT) Transistor NPN 400V 4A 45W Surface Mount DPAK
