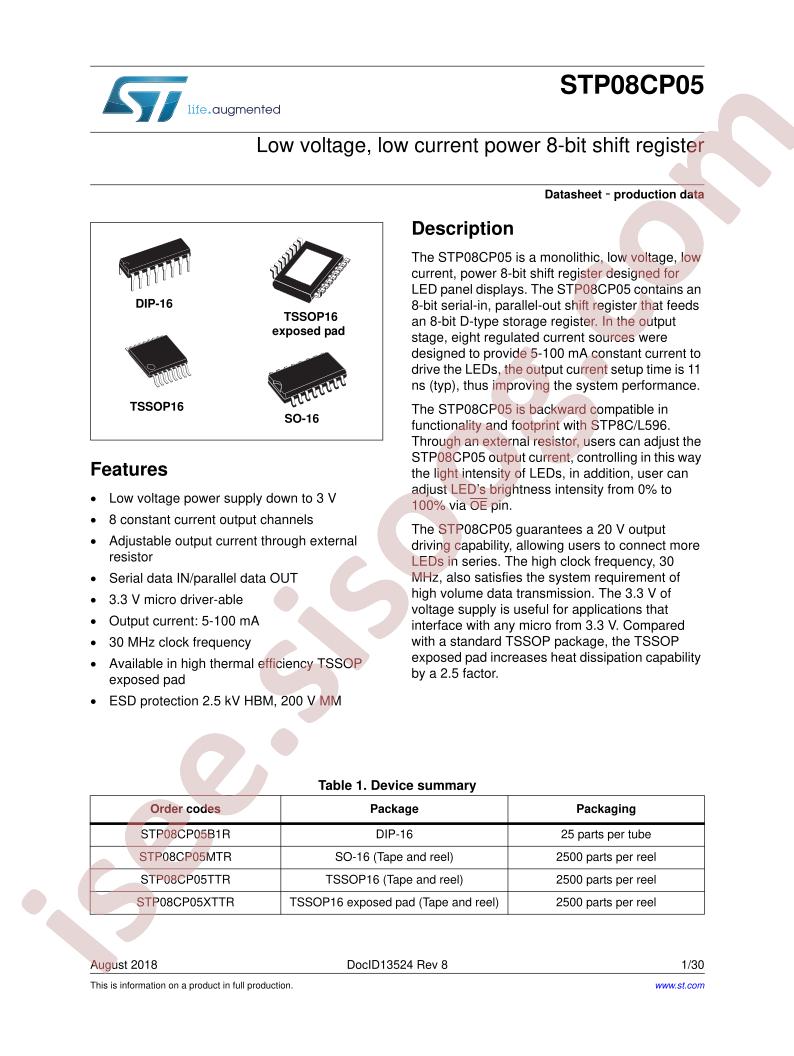

STP08CP05 دیتاشیت

STP08CP05

مشخصات دیتاشیت

نام دیتاشیت STP08CP05
حجم فایل 601.099 کیلوبایت
نوع فایل pdf
تعداد صفحات 30

دانلود دیتاشیت STP08CP05

دانلود دیتاشیت

سایر مستندات

STP08CP05TTR 30 pages

مشخصات فنی

  • RoHS: true
  • Type: Linear
  • Category: Nixie Tube Driver/LED Driver/LED Drivers
  • Channels: 8
  • Topology: Shift Register
  • Datasheet: STMicroelectronics STP08CP05MTR
  • Input Voltage: 3V~5.5V
  • Output Current: 100mA
  • Output Voltage: 20V
  • Switch Frequency: 30MHz
  • Operating temperature: -40°C~+125°C
  • Package: SOP-16
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Internal Switch(s): Yes
  • Number of Outputs: 8
  • Voltage - Supply (Min): 3V
  • Voltage - Supply (Max): 5.5V
  • Voltage - Output: 20V
  • Current - Output / Channel: 100mA
  • Frequency: 30MHz
  • Dimming: -
  • Applications: -
  • Mounting Type: Surface Mount
  • Package / Case: 16-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 16-SO
  • Base Part Number: STP08C
  • detail: LED Driver IC 8 Output Linear Shift Register Dimming 100mA 16-SO
