دیتاشیت STP9NK65ZFP

STP9NK65Z(FP)

مشخصات دیتاشیت

نام دیتاشیت STP9NK65Z(FP)
حجم فایل 435.294 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

دانلود دیتاشیت STP9NK65Z(FP)

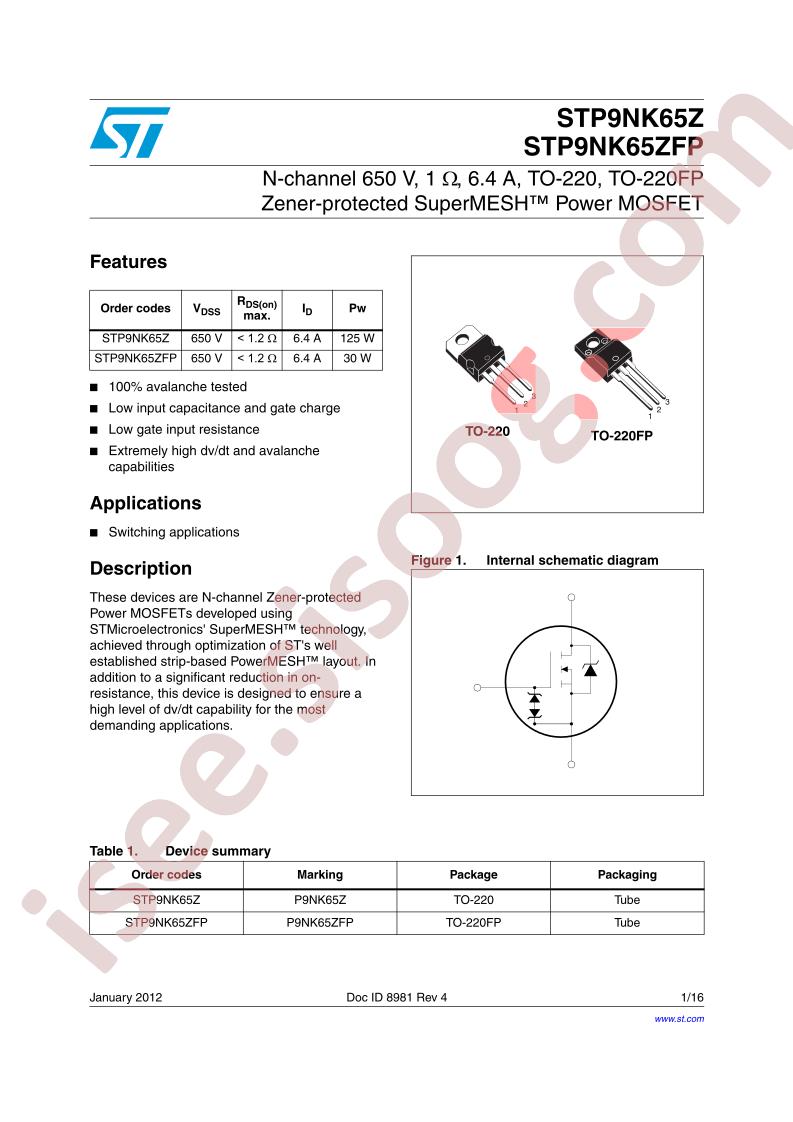

STP9NK65Z(FP) Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: SuperMESH™
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 650V
  • Current - Continuous Drain (Id) @ 25°C: 6.4A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 1.2Ohm @ 3.2A, 10V
  • Vgs(th) (Max) @ Id: 4.5V @ 100µA
  • Gate Charge (Qg) (Max) @ Vgs: 41nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 1145pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 125W (Tc)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220AB
  • Package / Case: TO-220-3
  • Base Part Number: STP9N
  • detail: N-Channel 650V 6.4A (Tc) 125W (Tc) Through Hole TO-220AB
