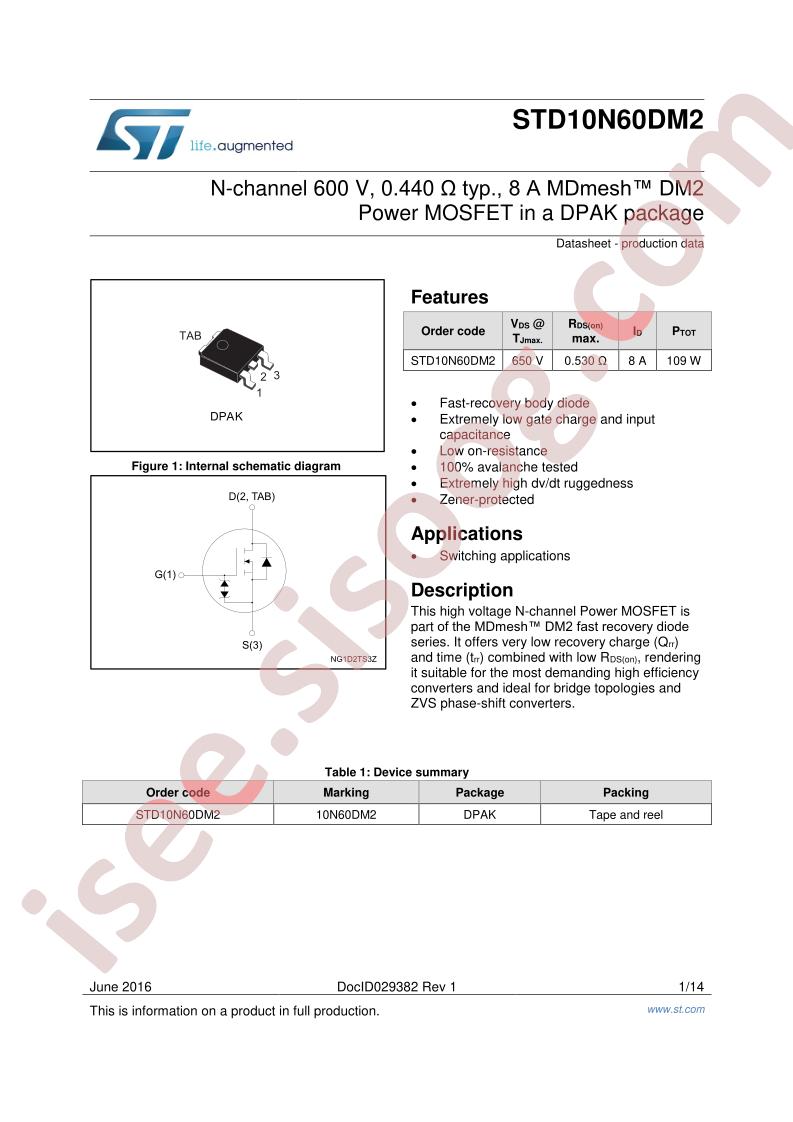

STD10N60DM2 دیتاشیت

STD10N60DM2 Datasheet

مشخصات دیتاشیت

نام دیتاشیت STD10N60DM2 Datasheet
حجم فایل 827.513 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

مشاهده دیتاشیت STD10N60DM2 Datasheet

دانلود دیتاشیت

سایر مستندات

مستندات دیگری یافت نشد!

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 109W
  • Total Gate Charge (Qg@Vgs): 15nC@10V
  • Drain Source Voltage (Vdss): 650V
  • Input Capacitance (Ciss@Vds): 529pF@100V
  • Continuous Drain Current (Id): 8A
  • Gate Threshold Voltage (Vgs(th)@Id): 5V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 530mΩ@4A,10V
  • Package: TO-252-3(DPAK)
  • Manufacturer: STMicroelectronics
  • Series: MDmesh™ DM2
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 650V
  • Current - Continuous Drain (Id) @ 25°C: 8A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 530mOhm @ 4A, 10V
  • Vgs(th) (Max) @ Id: 5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 15nC @ 10V
  • Vgs (Max): ±25V
  • Input Capacitance (Ciss) (Max) @ Vds: 529pF @ 100V
  • FET Feature: -
  • Power Dissipation (Max): 109W (Tc)
  • Mounting Type: Surface Mount
  • Supplier Device Package: DPAK
  • Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Base Part Number: STD10
  • detail: N-Channel 650V 8A (Tc) 109W (Tc) Surface Mount DPAK
