STPS3030CG-TR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | STPS3030CG-TR |
|---|---|
| حجم فایل | 50.491 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 9 |
دانلود دیتاشیت STPS3030CG-TR |
دانلود دیتاشیت |
|---|
سایر مستندات

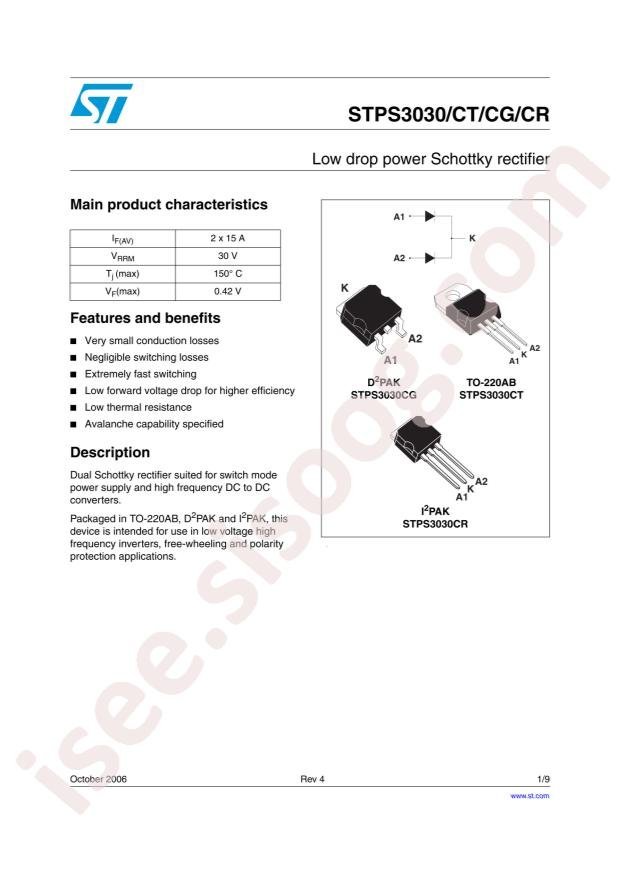

STPS3030/CT/CG/CR 9 pages
مشخصات فنی
- RoHS: true
- Category: Diodes/Schottky Barrier Diodes (SBD)
- Datasheet: STMicroelectronics STPS3030CG-TR
- Diode Configuration: Dual Common Cathode
- Reverse Voltage (Vr): 30V
- Forward Voltage (Vf@If): 490mV@15A
- Reverse Leakage Current (Ir): 1mA@30V
- Average Rectified Current (Io): 15A
- Package: TO-263
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30V
- Current - Average Rectified (Io) (per Diode): 15A
- Voltage - Forward (Vf) (Max) @ If: 490mV @ 15A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Current - Reverse Leakage @ Vr: 1mA @ 30V
- Operating Temperature - Junction: 150°C (Max)
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: D2PAK
- Base Part Number: STPS3030
- detail: Diode Array 1 Pair Common Cathode Schottky 30V 15A Surface Mount TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
