STS8DN6LF6AG دیتاشیت

STS8DN6LF6AG

مشخصات دیتاشیت

نام دیتاشیت STS8DN6LF6AG
حجم فایل 58.994 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

مشاهده دیتاشیت STS8DN6LF6AG

دانلود دیتاشیت

سایر مستندات

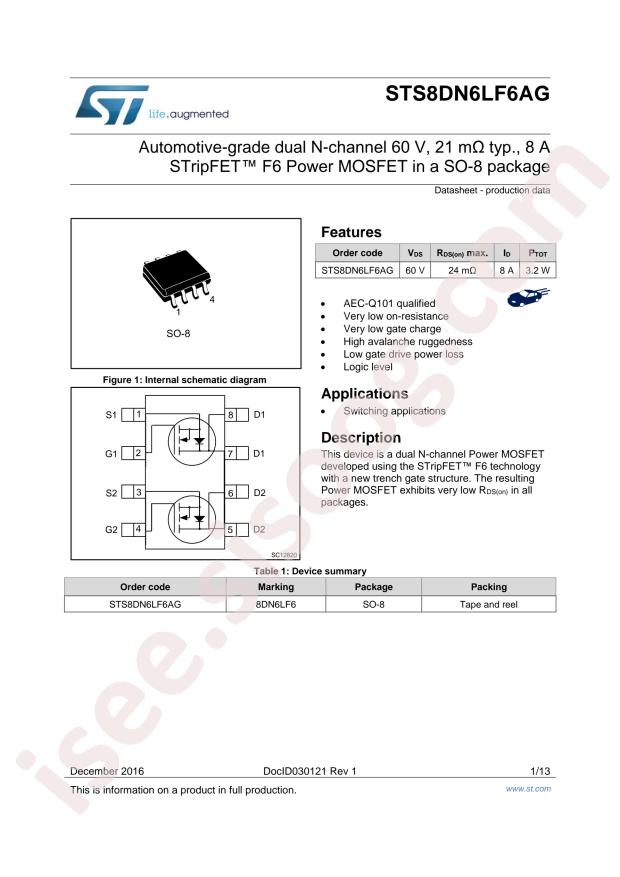

STS8DN6LF6AG Datasheet 13 pages

مشخصات فنی

  • RoHS: true
  • Type: 2 N-Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STS8DN6LF6AG
  • Operating Temperature: -55°C~+175°C@(Tj)
  • Power Dissipation (Pd): 3.2W
  • Total Gate Charge (Qg@Vgs): 27nC@10V
  • Drain Source Voltage (Vdss): 60V
  • Input Capacitance (Ciss@Vds): 1340pF@25V
  • Continuous Drain Current (Id): 8A
  • Gate Threshold Voltage (Vgs(th)@Id): 2.5V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 24mΩ@10V,4A
  • Package: SOP-8
  • Manufacturer: STMicroelectronics
  • Series: Automotive, AEC-Q101, STripFET™ F6
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: 2 N-Channel (Dual)
  • FET Feature: Logic Level Gate
  • Drain to Source Voltage (Vdss): 60V
  • Current - Continuous Drain (Id) @ 25°C: 8A (Ta)
  • Rds On (Max) @ Id, Vgs: 24mOhm @ 4A, 10V
  • Vgs(th) (Max) @ Id: 2.5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 27nC @ 10V
  • Input Capacitance (Ciss) (Max) @ Vds: 1340pF @ 25V
  • Power - Max: 3.2W
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SO
  • Base Part Number: STS8DN
  • detail: Mosfet Array 2 N-Channel (Dual) 60V 8A (Ta) 3.2W Surface Mount 8-SO
