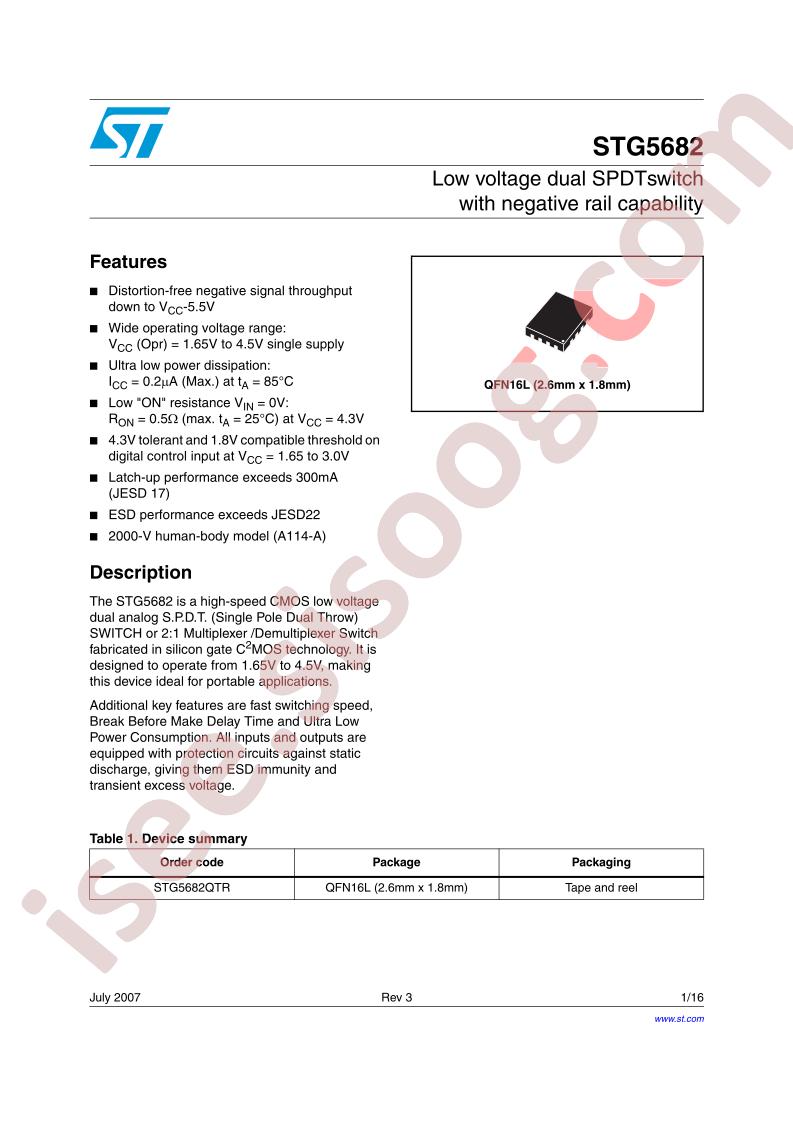

STG5682QTR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STG5682
|
|
حجم فایل
|
218.679
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
16
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Switch Circuit:
SPDT
-
Multiplexer/Demultiplexer Circuit:
2:1
-
Number of Circuits:
2
-
On-State Resistance (Max):
550mOhm
-
Channel-to-Channel Matching (ΔRon):
15mOhm
-
Voltage - Supply, Single (V+):
1.65V ~ 4.5V
-
Voltage - Supply, Dual (V±):
-
-
Switch Time (Ton, Toff) (Max):
80ns, 50ns
-
-3db Bandwidth:
33MHz
-
Charge Injection:
126pC
-
Channel Capacitance (CS(off), CD(off)):
6pF
-
Current - Leakage (IS(off)) (Max):
100nA
-
Crosstalk:
-60dB @ 100kHz
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Mounting Type:
Surface Mount
-
Package / Case:
16-UFQFN
-
Supplier Device Package:
16-QFN (2.6x1.8)
-
Base Part Number:
STG5682
-
detail:
2 Circuit IC Switch 2:1 550mOhm 16-QFN (2.6x1.8)
