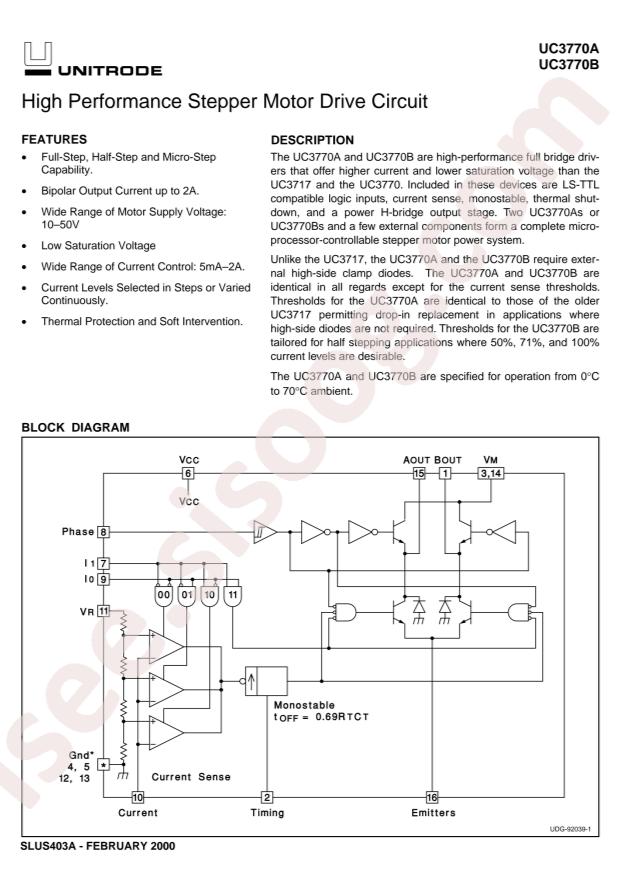

UC3770AN دیتاشیت

UC3770AN

مشخصات دیتاشیت

نام دیتاشیت UC3770AN
حجم فایل 84.449 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

دانلود دیتاشیت UC3770AN

دانلود دیتاشیت

سایر مستندات

UC3770A,B 6 pages

مشخصات فنی

  • RoHS: true
  • Feature: Thermal Protection(OPT)
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Texas Instruments UC3770AN
  • Supply Voltage: 4.75V~5.3V
  • Driven Configuration: Half Bridge
  • Operating Temperature: 0°C~+150°C@(Tj)
  • Package: PDIP-16
  • Manufacturer: Texas Instruments
  • Current - Peak Output: -
  • Features: -
  • Fault Protection: Over Temperature
  • Current - Output / Channel: 2A
  • Rds On (Typ): -
  • Technology: Bipolar
  • Output Configuration: Half Bridge (2)
  • Load Type: Inductive
  • Series: -
  • Packaging: Tube
  • Interface: Logic
  • Package / Case: 16-DIP (0.300", 7.62mm)
  • Voltage - Load: 10V ~ 45V
  • Part Status: Active
  • Base Part Number: UC377
  • Supplier Device Package: 16-PDIP
  • Mounting Type: Through Hole
  • Voltage - Supply: 4.75V ~ 5.3V
  • Applications: General Purpose, Stepper Motors
  • detail: Half Bridge (2) Driver General Purpose, Stepper Motors Bipolar 16-PDIP
