UC3705N دیتاشیت

UC3705N

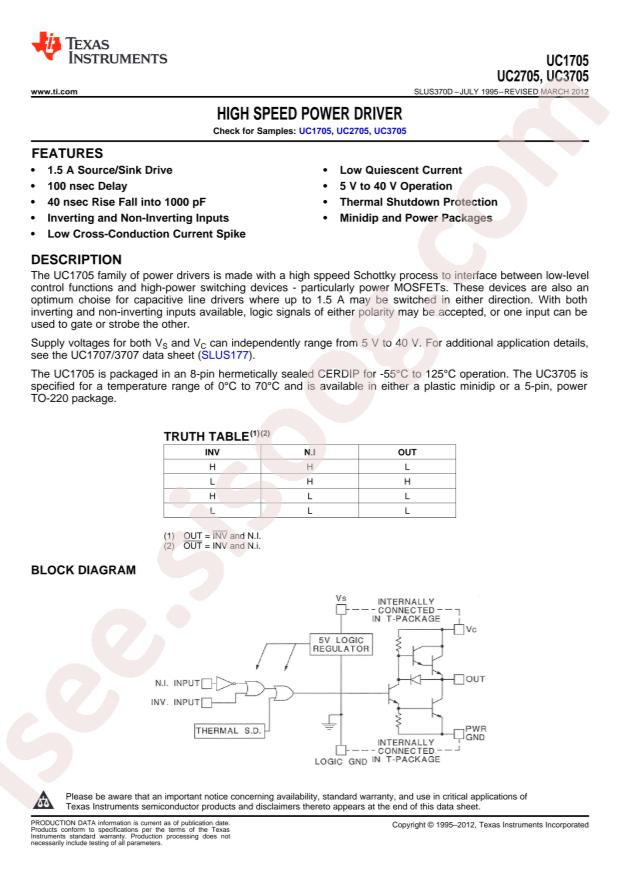

مشخصات دیتاشیت

نام دیتاشیت UC3705N
حجم فایل 77.252 کیلوبایت
نوع فایل pdf
تعداد صفحات 19

دانلود دیتاشیت UC3705N

دانلود دیتاشیت

سایر مستندات

UC1705, 2705, 3705 18 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Texas Instruments UC3705N
  • Fall Time: 60ns
  • Load Type: MOSFET
  • Rise Time: 60ns
  • Supply Voltage: 5V~40V
  • Number of Drivers: 1
  • Driven Configuration: Low Side
  • Operating Temperature: 0°C~+70°C@(Ta)
  • Peak Output Current(sink): 1.5A
  • Peak Output Current(source): 1.5A
  • Package: DIP-8
  • Manufacturer: Texas Instruments
  • Channel Type: Single
  • Input Type: Inverting, Non-Inverting
  • Voltage - Supply: 5V ~ 40V
  • Series: -
  • Mounting Type: Through Hole
  • Packaging: Tube
  • Package / Case: 8-DIP (0.300", 7.62mm)
  • Part Status: Active
  • Logic Voltage - VIL, VIH: 0.8V, 2.2V
  • Rise / Fall Time (Typ): 60ns, 60ns
  • Gate Type: N-Channel MOSFET
  • Base Part Number: UC370
  • Supplier Device Package: 8-PDIP
  • Current - Peak Output (Source, Sink): 1.5A, 1.5A
  • detail: Low-Side Gate Driver IC Inverting, Non-Inverting 8-PDIP
