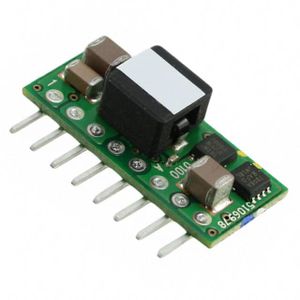

PTV03010WAH دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت PTV03010WAH	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/Power Modules

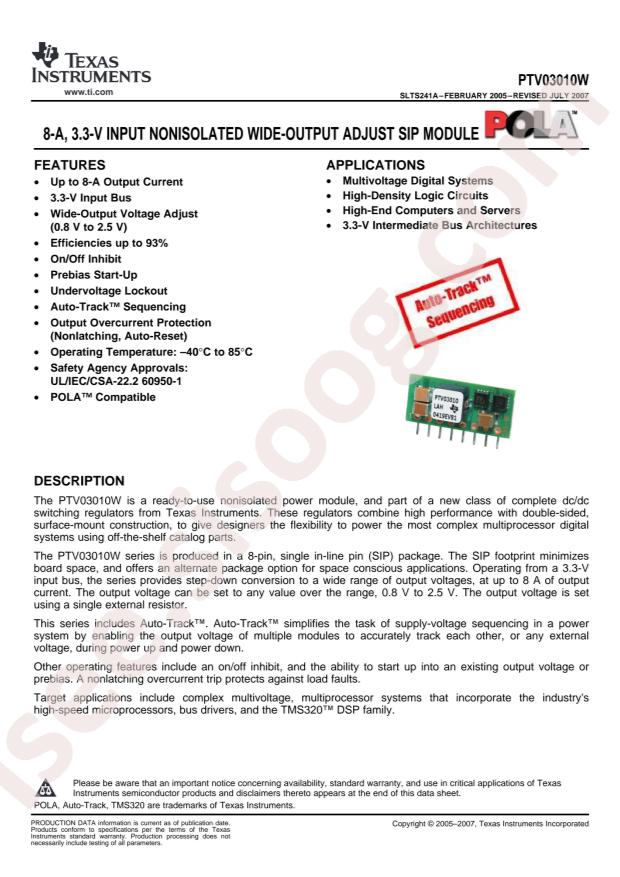

Datasheet: Texas Instruments PTV03010WAH
Output Channel: 1
Output Voltage: 0.8V~2.5V
Input Voltage(DC): 2.95V~3.65V
Output Current (Max): 8A
Conversion Efficiency: 93%
Package: SIP-8
Manufacturer: Texas Instruments
Current - Output (Max): 8A
Applications: ITE (Commercial)
Size / Dimension: 0.90" L x 0.33" W x 0.40" H (22.9mm x 8.4mm x 10.2mm)
Voltage - Input (Max): 3.65V
Part Status: Active
Features: UVLO
Number of Outputs: 1
Packaging: Tray
Type: Non-Isolated PoL Module
Package / Case: 8-SIP Module
Efficiency: 93%
Voltage - Output 2: -
Series: PTV03010W
Operating Temperature: -40°C ~ 85°C
Base Part Number: PTV030
Voltage - Output 1: 0.8 ~ 2.5V
Mounting Type: Through Hole
Voltage - Output 3: -
Voltage - Input (Min): 2.95V
detail: Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 2.5V 8A 2.95V - 3.65V Input
