SN74LV04APW دیتاشیت

SN74LV04APW

مشخصات دیتاشیت

نام دیتاشیت SN74LV04APW
حجم فایل 64.062 کیلوبایت
نوع فایل pdf
تعداد صفحات 28

دانلود دیتاشیت SN74LV04APW

دانلود دیتاشیت

سایر مستندات

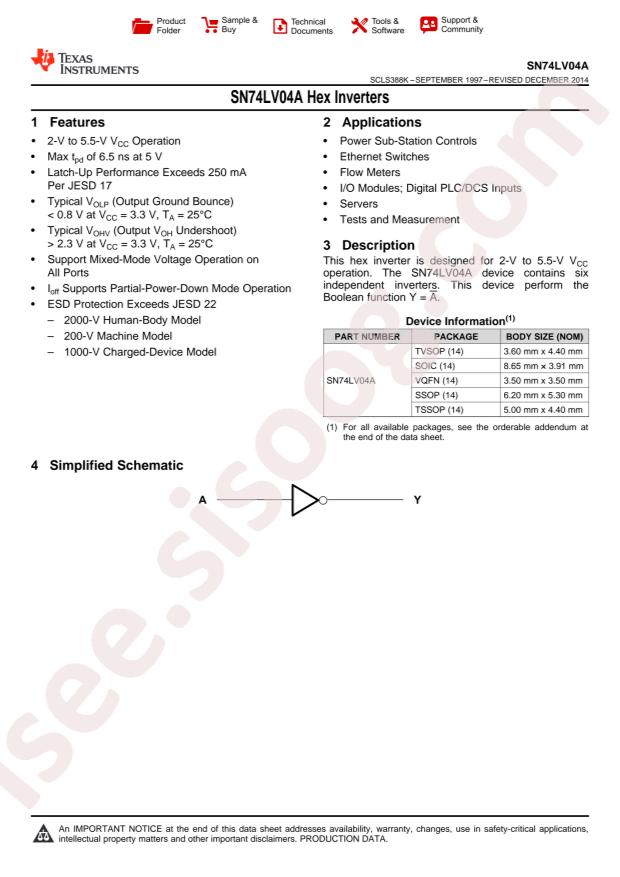

SN54LV04A, SN74LV04A 27 pages

مشخصات فنی

  • RoHS: true
  • Series: 74LV
  • Category: Logic ICs/Inverters
  • Datasheet: Texas Instruments SN74LV04APWRG4
  • Sink Current: 12mA
  • Source Current: 12mA
  • Number of Inputs: 1
  • Number of Circuits: 6
  • Supply Current (Max): 20uA
  • Low level range (VIL): 0.5V
  • Max Propagation Delay: 7.5ns@5V,50pF
  • Operating Temperature: -40°C~+85°C
  • High level range (VIH): 1.5V
  • Supply Voltage(Single): 2V~5.5V
  • Package: TSSOP-14
  • Manufacturer: Texas Instruments
  • Mounting Type: Surface Mount
  • Logic Level - Low: 0.5V
  • Current - Quiescent (Max): 20µA
  • Voltage - Supply: 2V ~ 5.5V
  • Packaging: Digi-Reel®
  • Package / Case: 14-TSSOP (0.173", 4.40mm Width)
  • Logic Level - High: 1.5V
  • Part Status: Active
  • Current - Output High, Low: 12mA, 12mA
  • Features: -
  • Base Part Number: SN74LV04
  • Supplier Device Package: 14-TSSOP
  • Logic Type: Inverter
  • Max Propagation Delay @ V, Max CL: 7.5ns @ 5V, 50pF
  • detail: Inverter IC 6 Channel 14-TSSOP
