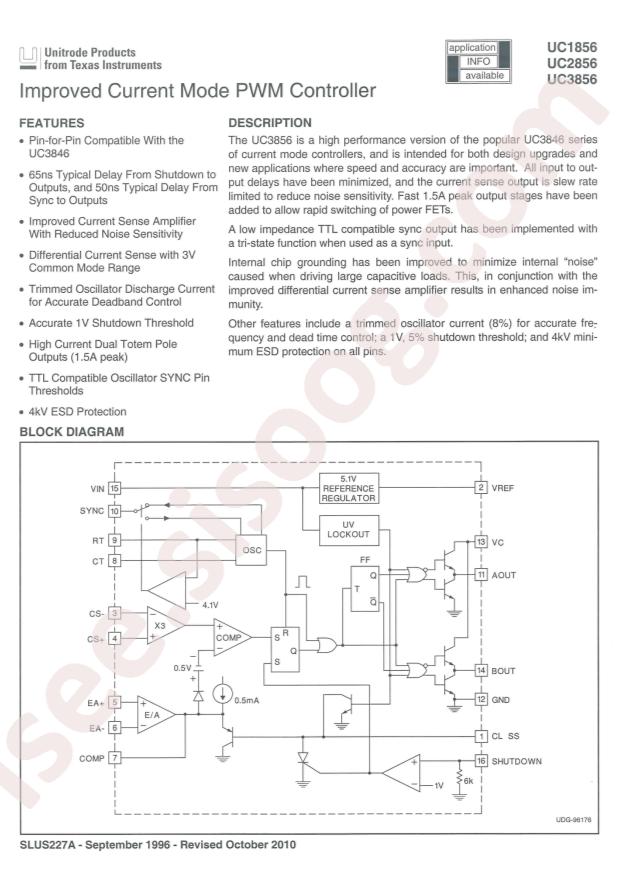

UC2856DW Datasheet
Datasheet specifications
| Datasheet's name | UC2856DW |
|---|---|
| File size | 77.734 KB |
| File type | |
| Number of pages | 14 |
Download Datasheet UC2856DW |
Download Datasheet |
|---|
Other documentations
UC1856, 2856, 3856 14 pages
Technical specifications
- RoHS: true
- Category: Power Supply Chip/AC-DC Controllers & Regulators
- Topology: Boost;Flyback;Full-Bridge;Half-Bridge;Push-pull
- Datasheet: Texas Instruments UC2856DW
- Duty Cycle: 47%
- Supply Voltage: 7V~40V
- Switching Frequency: 200kHz
- Operating Temperature: -40°C~+85°C@(Ta)
- Package: SOP-16-300mil
- Manufacturer: Texas Instruments
- Part Status: Active
- Package / Case: 16-SOIC (0.295", 7.50mm Width)
- Packaging: Tube
- Frequency - Switching: 200kHz
- Supplier Device Package: 16-SOIC
- Number of Outputs: 2
- Serial Interfaces: -
- Synchronous Rectifier: Yes
- Function: Step-Up, Step-Up/Step-Down
- Clock Sync: Yes
- Mounting Type: Surface Mount
- Output Configuration: Positive
- Base Part Number: UC285
- Series: -
- Output Type: Transistor Driver
- Control Features: Enable, Frequency Control, Soft Start
- Output Phases: 1
- Duty Cycle (Max): 47%
- Voltage - Supply (Vcc/Vdd): 7V ~ 40V
- detail: Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 16-SOIC
