SN74ALS804AN دیتاشیت

SN74ALS804AN

مشخصات دیتاشیت

نام دیتاشیت SN74ALS804AN
حجم فایل 79.824 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

دانلود دیتاشیت SN74ALS804AN

دانلود دیتاشیت

سایر مستندات

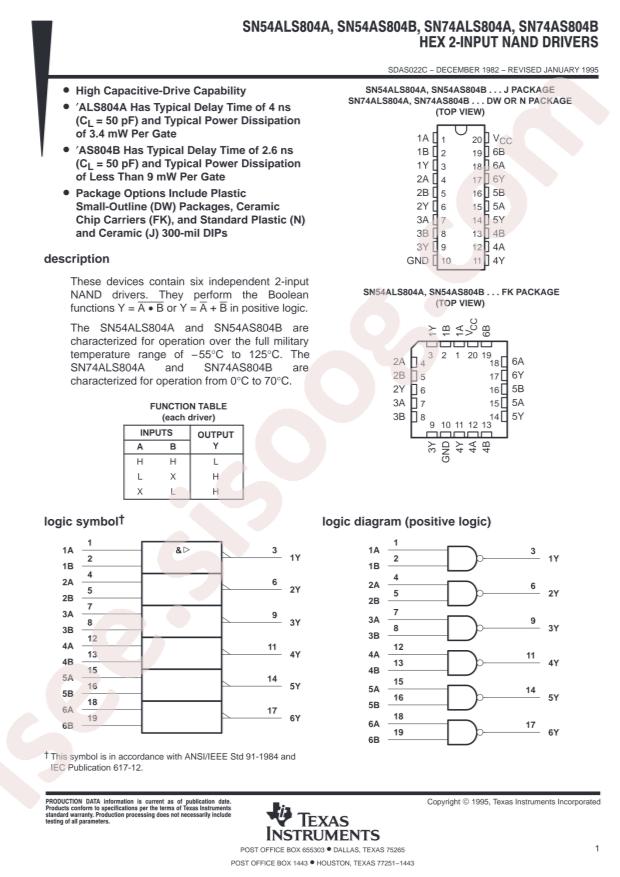

SN54ALS804A, SN54AS804B, SN74ALS804A, SN74AS804B 16 pages

مشخصات فنی

  • RoHS: true
  • Series: 74ALS
  • Category: Logic ICs/Gates
  • Datasheet: Texas Instruments SN74ALS804AN
  • Sink Current: 24mA
  • Source Current: 15mA
  • Supply Voltage: 4.5V~5.5V
  • Logic Gate Type: NAND Gates
  • Number of Channels: 6
  • Low Level Range (VIL): 0.8V
  • Operating Temperature: 0°C~+70°C
  • High Level Range (VIH): 2V
  • Propagation Delay Time: 8ns@5V,50pF
  • Package: PDIP-20
  • Manufacturer: Texas Instruments
  • Mounting Type: Through Hole
  • Logic Level - Low: 0.8V
  • Voltage - Supply: 4.5V ~ 5.5V
  • Number of Circuits: 6
  • Packaging: Tube
  • Package / Case: 20-DIP (0.300", 7.62mm)
  • Logic Level - High: 2V
  • Part Status: Active
  • Current - Output High, Low: 15mA, 24mA
  • Features: -
  • Base Part Number: SN74ALS8
  • Supplier Device Package: 20-PDIP
  • Number of Inputs: 2
  • Logic Type: NAND Gate
  • Max Propagation Delay @ V, Max CL: 8ns @ 5V, 50pF
  • detail: NAND Gate IC 6 Channel 20-PDIP
