ADS8506 Datasheet دیتاشیت

ADS8506 Datasheet

مشخصات دیتاشیت

نام دیتاشیت ADS8506 Datasheet
حجم فایل 1321.15 کیلوبایت
نوع فایل pdf
تعداد صفحات 35

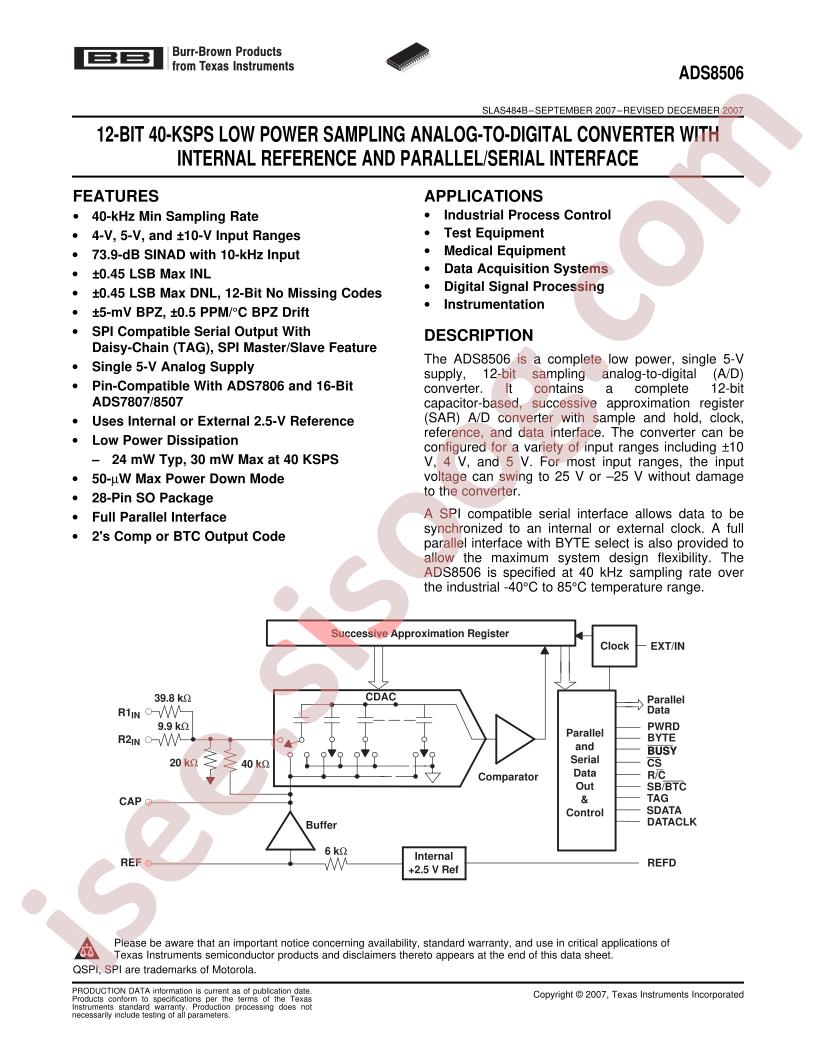

مشاهده دیتاشیت ADS8506 Datasheet

دانلود دیتاشیت

سایر مستندات

ADS8506IBDW 36 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Texas Instruments ADS8506IBDW
  • Interface: SPI;Parallel
  • resolution: 12Bit
  • Supply Voltage: 5V
  • number of channels: 1
  • sampling frequency: 40kHz
  • Operating Temperature: -40°C~+85°C
  • Package: SOP-28-300mil
  • Manufacturer: Texas Instruments
  • Architecture: SAR
  • Input Type: Single Ended
  • Series: -
  • Ratio - S/H:ADC: 1:1
  • Packaging: Tube
  • Data Interface: SPI, Parallel
  • Reference Type: External, Internal
  • Part Status: Active
  • Supplier Device Package: 28-SOIC
  • Number of A/D Converters: 1
  • Sampling Rate (Per Second): 40k
  • Configuration: S/H-ADC
  • Package / Case: 28-SOIC (0.295", 7.50mm Width)
  • Mounting Type: Surface Mount
  • Base Part Number: ADS8506
  • Features: -
  • Number of Bits: 12
  • Number of Inputs: 1
  • Voltage - Supply, Analog: 5V
  • Voltage - Supply, Digital: 5V
  • detail: 12 Bit Analog to Digital Converter 1 Input 1 SAR 28-SOIC
