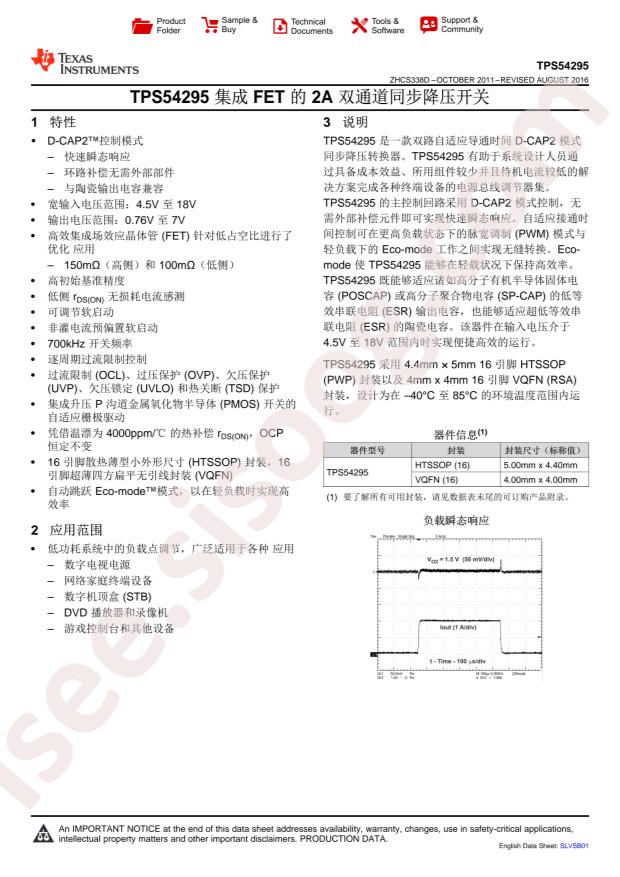

- دیتاشیت TPS54295RSAT
TPS54295RSAT دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | TPS54295RSAT |
|---|---|
| حجم فایل | 89.171 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 34 |
دانلود دیتاشیت TPS54295RSAT |
دانلود دیتاشیت |
|---|
سایر مستندات
TPS54295 Datasheet 35 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Datasheet: Texas Instruments TPS54295RSAT
- Output Type: Adjustable
- Input Voltage: 4.5V~18V
- Output Voltage: 0.76V~7V
- Number of Outputs: 2
- Switching Frequency: 700kHz
- Output Current (Max): 2A
- Operating Temperature: -40°C~+85°C@(TA)
- Synchronous Rectification: Yes
- Package: QFN-16-EP(4x4)
- Manufacturer: Texas Instruments
- Current - Output: 2A
- Voltage - Input (Max): 18V
- Frequency - Switching: 700kHz
- Part Status: Active
- Base Part Number: TPS542
- Voltage - Output (Min/Fixed): 0.76V
- Package / Case: 16-VQFN Exposed Pad
- Series: D-CAP2™, Eco-Mode™
- Packaging: Cut Tape (CT)
- Synchronous Rectifier: Yes
- Output Configuration: Positive
- Voltage - Output (Max): 7V
- Mounting Type: Surface Mount
- Supplier Device Package: 16-QFN (4x4)
- Voltage - Input (Min): 4.5V
- detail: Buck Switching Regulator IC Positive Adjustable 0.76V 2 Output 2A 16-VQFN Exposed Pad
