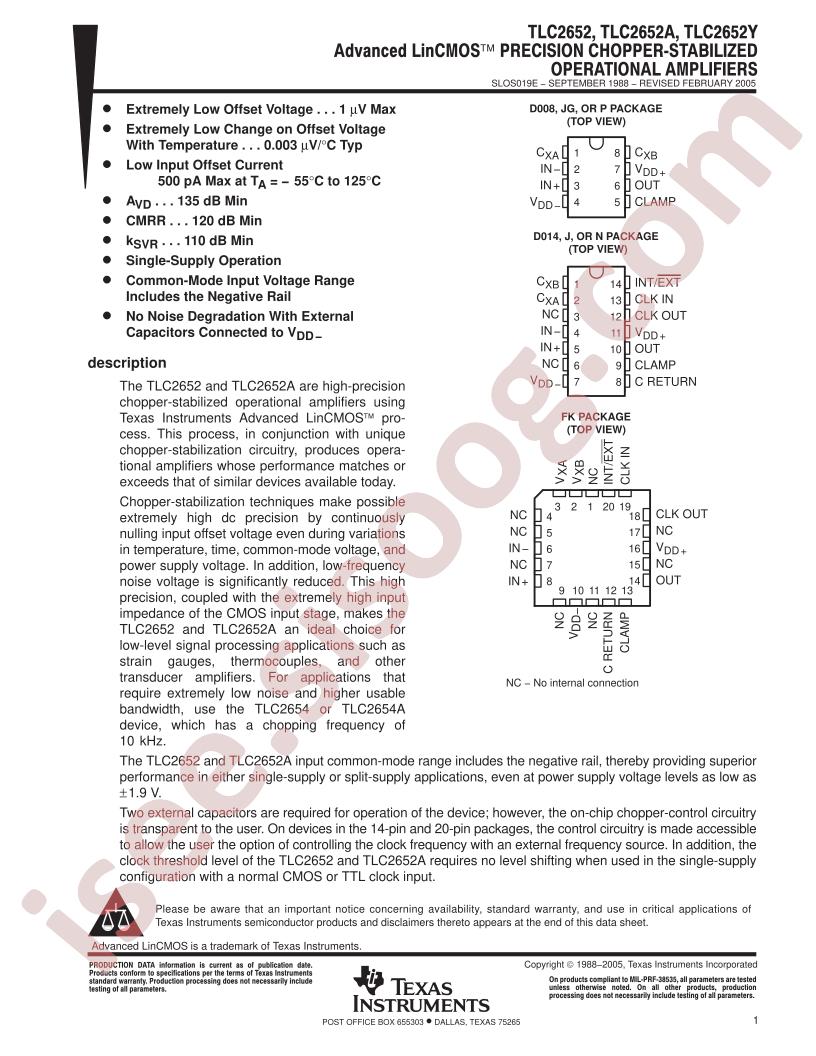

TLC2652, TLC2652A, TLC2652Y Datasheet

TLC2652, TLC2652A, TLC2652Y

Datasheet specifications

Datasheet's name TLC2652, TLC2652A, TLC2652Y
File size 1223.609 KB
File type pdf
Number of pages 41

Download Datasheet TLC2652, TLC2652A, TLC2652Y

Download Datasheet

Other documentations

TLC2652CN 41 pages

Technical specifications

  • RoHS: true
  • Category: Operational Amplifier/Comparator/Precision OpAmps
  • Datasheet: Texas Instruments TLC2652C-8D
  • Number of Circuits: 1
  • -3db Bandwidth(G=1): -
  • Operating Temperature: 0°C~+70°C
  • Current - Input Bias(Ib): 4pA
  • Gain Bandwidth Product(GBP): 1.9MHz
  • Voltage - Input Offset(Vos): 0.6uV
  • Package: SOP-8
  • Manufacturer: Texas Instruments
  • Current - Output / Channel: 50mA
  • Slew Rate: 3.1V/µs
  • Voltage - Input Offset: 0.6µV
  • Part Status: Active
  • Packaging: Tube
  • Supplier Device Package: 8-SOIC
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Voltage - Supply, Single/Dual (±): 3.8V ~ 16V, ±1.9V ~ 8V
  • Series: LinCMOS™
  • Output Type: -
  • Base Part Number: TLC265
  • Current - Supply: 1.5mA
  • Mounting Type: Surface Mount
  • Amplifier Type: Zero-Drift
  • Current - Input Bias: 4pA
  • Gain Bandwidth Product: 1.9MHz
  • detail: Zero-Drift Amplifier 1 Circuit 8-SOIC
