CD74ACT109E دیتاشیت

مشخصات دیتاشیت

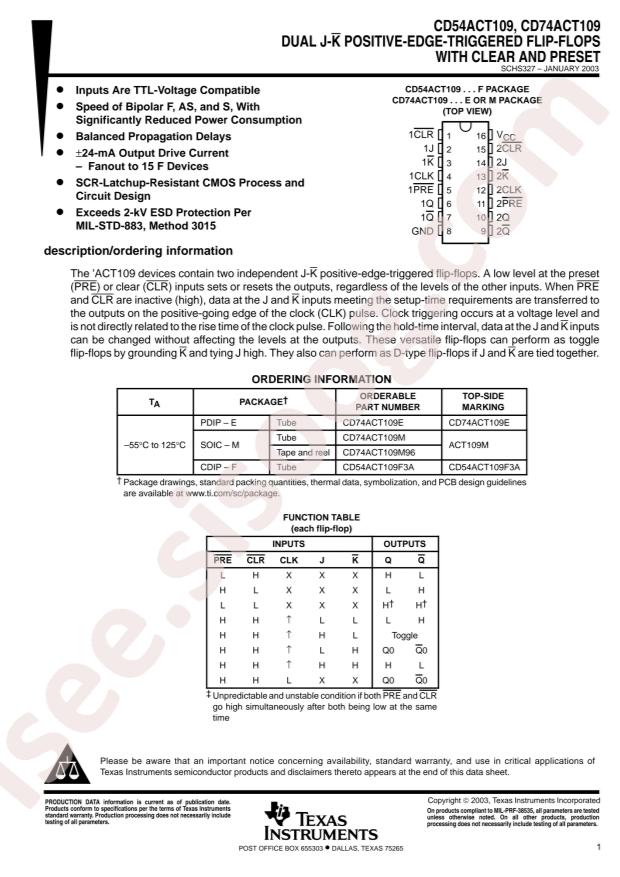

مشاهده دیتاشیت CD74ACT109E	دانلود دیتاشیت

RoHS: true
Type: JK-Type
Series: 74ACT
Category: Logic ICs/Flip Flops
Function: 置位和复位
Datasheet: Texas Instruments CD74ACT109E
Output Type: 互补型
Sink Current: 24mA
Trigger Type: 上升沿
Source Current: 24mA
Supply Voltage: 4.5V~5.5V
Clock Frequency: 100MHz
Input Capacitance: 10pF
Number of Channels: 1
Operating Temperature: -55°C~+125°C
Quiescent Current (Iq): 4uA
Maximum Propagation Delay: 10.3ns@5V,50pF
Package: PDIP-16
Manufacturer: Texas Instruments
Number of Elements: 2
Voltage - Supply: 4.5V ~ 5.5V
Package / Case: 16-DIP (0.300", 7.62mm)
Packaging: Tube
Supplier Device Package: 16-PDIP
Number of Bits per Element: 1
Current - Output High, Low: 24mA, 24mA
Part Status: Active
Base Part Number: 74ACT109
Mounting Type: Through Hole
Current - Quiescent (Iq): 4µA
Max Propagation Delay @ V, Max CL: 10.3ns @ 5V, 50pF
detail: Flip Flop 2 Element JK Type 1 Bit Positive Edge 16-DIP (0.300", 7.62mm)
