SN74LV86ATPWRG4Q1 دیتاشیت

SN74LV86ATPWRG4Q1

مشخصات دیتاشیت

نام دیتاشیت SN74LV86ATPWRG4Q1
حجم فایل 69.993 کیلوبایت
نوع فایل pdf
تعداد صفحات 12

دانلود دیتاشیت SN74LV86ATPWRG4Q1

دانلود دیتاشیت

سایر مستندات

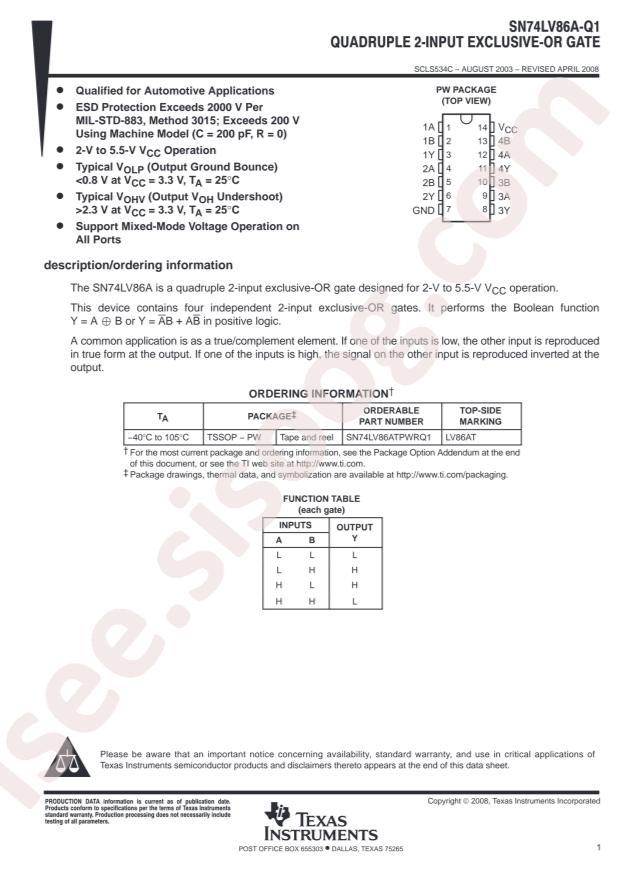

SN74LV86A-Q1 12 pages

مشخصات فنی

  • RoHS: true
  • Series: 74LV
  • Category: Logic ICs/Gates
  • Datasheet: Texas Instruments SN74LV86ATPWRG4Q1
  • Sink Current: 12mA
  • Source Current: 12mA
  • Supply Voltage: 2V~5.5V
  • Logic Gate Type: XORGate
  • Number of Channels: 4
  • Low Level Range (VIL): 0.5V
  • Operating Temperature: -40°C~+105°C
  • High Level Range (VIH): 1.5V
  • Propagation Delay Time: 8.8ns@5V,50pF
  • Quiescent Current (Max): 20uA
  • Package: TSSOP-14
  • Manufacturer: Texas Instruments
  • Mounting Type: Surface Mount
  • Logic Level - Low: 0.5V
  • Current - Quiescent (Max): 20µA
  • Voltage - Supply: 2V ~ 5.5V
  • Number of Circuits: 4
  • Packaging: Digi-Reel®
  • Package / Case: 14-TSSOP (0.173", 4.40mm Width)
  • Logic Level - High: 1.5V
  • Part Status: Active
  • Current - Output High, Low: 12mA, 12mA
  • Features: -
  • Base Part Number: SN74LV86
  • Supplier Device Package: 14-TSSOP
  • Number of Inputs: 2
  • Logic Type: XOR (Exclusive OR)
  • Max Propagation Delay @ V, Max CL: 8.8ns @ 5V, 50pF
  • detail: XOR (Exclusive OR) IC 4 Channel 14-TSSOP
