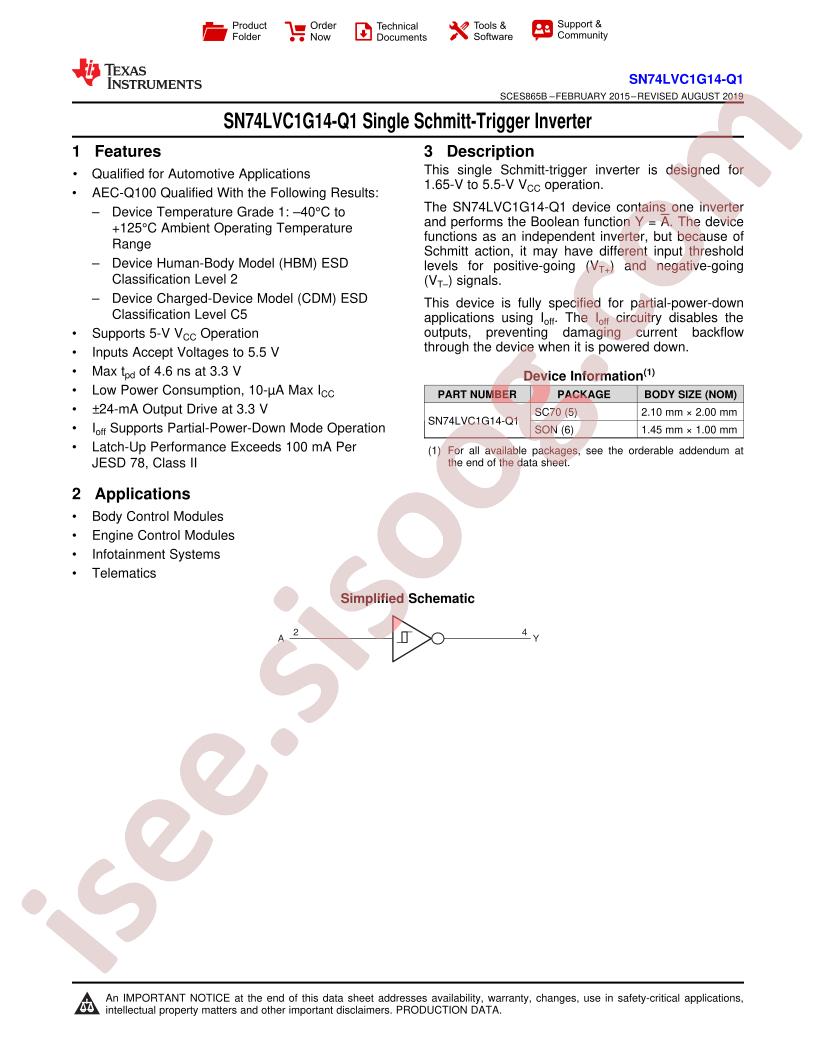

دیتاشیت SN74LVC1G14QDRYRQ1

SN74LVC1G14-Q1

مشخصات دیتاشیت

نام دیتاشیت SN74LVC1G14-Q1
حجم فایل 1577.137 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

دانلود دیتاشیت SN74LVC1G14-Q1

SN74LVC1G14-Q1 Datasheet

مشخصات

  • RoHS: true
  • Series: 74LVC
  • Category: Logic ICs/Inverters
  • Datasheet: Texas Instruments SN74LVC1G14QDRYRQ1
  • Input Type: Schmitt Trigger
  • Sink Current: 32mA
  • Source Current: 32mA
  • Number of Inputs: 1
  • Number of Circuits: 1
  • Supply Current (Max): 10uA
  • Low level range (VIL): 0.64V~2.29V
  • Max Propagation Delay: 13ns@1.8V,50pF
  • Operating Temperature: -40°C~+125°C
  • High level range (VIH): 1.16V~3.33V
  • Supply Voltage(Single): 1.65V~5.5V
  • Package: SON-6
  • Manufacturer: Texas Instruments
  • Mounting Type: Surface Mount
  • Logic Level - Low: 0.64V ~ 2.29V
  • Current - Quiescent (Max): 10µA
  • Voltage - Supply: 1.65V ~ 5.5V
  • Packaging: Cut Tape (CT)
  • Package / Case: 6-UFDFN
  • Logic Level - High: 1.16V ~ 3.33V
  • Part Status: Active
  • Current - Output High, Low: 32mA, 32mA
  • Features: Schmitt Trigger
  • Base Part Number: SN74LVC1G
  • Supplier Device Package: 6-USON (1.45x1)
  • Logic Type: Inverter
  • Max Propagation Delay @ V, Max CL: 6ns @ 5V, 50pF
  • detail: Inverter IC 1 Channel Schmitt Trigger 6-USON (1.45x1)
