دیتاشیت TLV272QDRG4Q1
مشخصات دیتاشیت
| نام دیتاشیت | TLV271-Q1, TLV272-Q1, TLV274-Q1 |
|---|---|
| حجم فایل | 1477.938 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 31 |

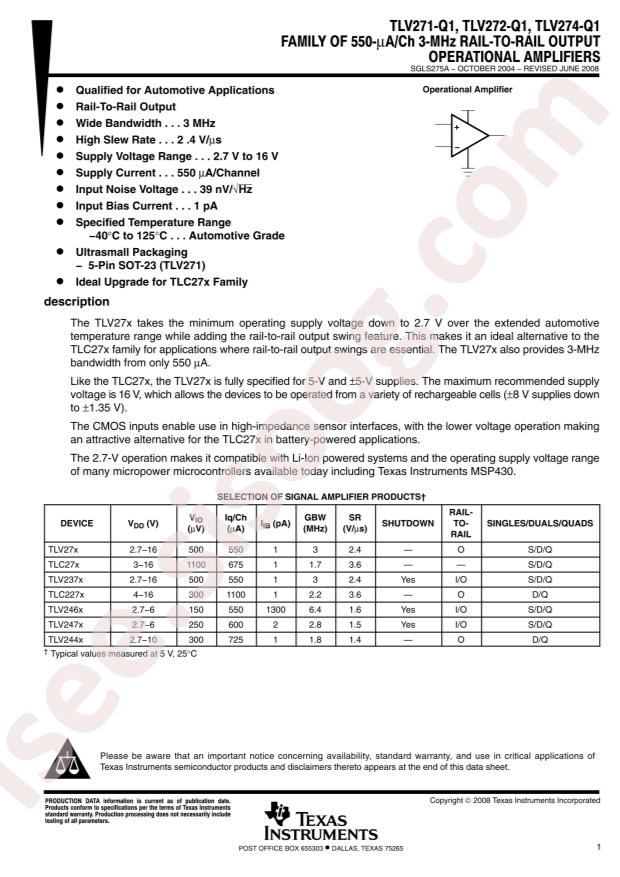

دانلود دیتاشیت TLV271-Q1, TLV272-Q1, TLV274-Q1 |
TLV271-Q1, TLV272-Q1, TLV274-Q1 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Operational Amplifier/Comparator/Operational Amplifier
- Datasheet: Texas Instruments TLV272QDRG4Q1
- Rail to Rail: 轨到轨
- -3db Bandwidth: -
- Output Current: 8mA
- Operating Temperature: -40°C~+125°C
- Current - Input Bias(Ib): 1pA
- Gain Bandwidth Product(GBP): 3MHz
- Package: SOP-8
- Manufacturer: Texas Instruments
- Current - Output / Channel: 8mA
- Slew Rate: 2.1V/µs
- Voltage - Input Offset: 500µV
- Part Status: Active
- Number of Circuits: 2
- Supplier Device Package: 8-SOIC
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Voltage - Supply, Single/Dual (±): 2.7V ~ 16V, ±1.35V ~ 8V
- Series: Automotive, AEC-Q100
- Output Type: Rail-to-Rail
- Base Part Number: TLV272
- Current - Supply: 750µA
- Mounting Type: Surface Mount
- Amplifier Type: General Purpose
- Current - Input Bias: 1pA
- Gain Bandwidth Product: 3MHz
- detail: General Purpose Amplifier 2 Circuit Rail-to-Rail 8-SOIC
