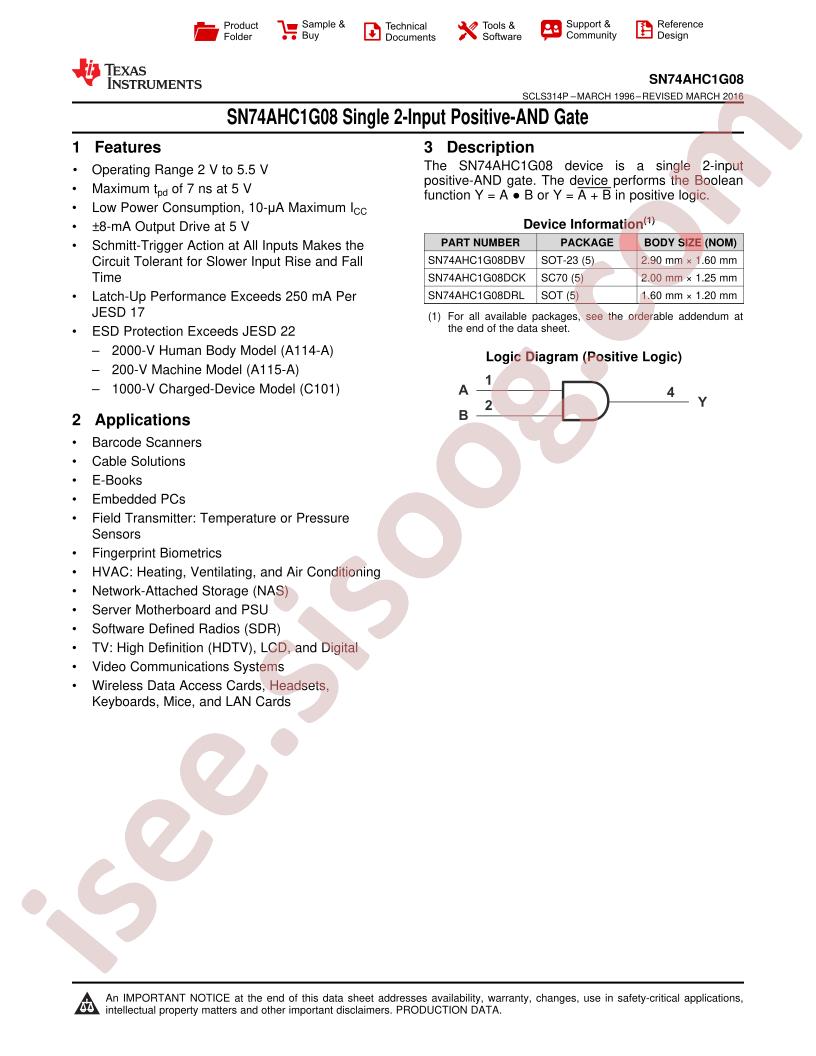

SN74AHC1G08 Datasheet

SN74AHC1G08

Datasheet specifications

Datasheet's name SN74AHC1G08
File size 1180.575 KB
File type pdf
Number of pages 25

Download Datasheet SN74AHC1G08

Download Datasheet

Other documentations

SN74AHC1G08DCKRG4 25 pages

Technical specifications

  • RoHS: true
  • Series: 74AHC
  • Category: Logic ICs/Gates
  • Datasheet: Texas Instruments SN74AHC1G08DBV3
  • Sink Current: 8mA
  • Source Current: 8mA
  • Supply Voltage: 2V~5.5V
  • Logic Gate Type: And
  • Number of Channels: 1
  • Low Level Range (VIL): 0.5V~1.65V
  • Operating Temperature: -55°C~+125°C
  • High Level Range (VIH): 1.5V~3.85V
  • Propagation Delay Time: 7.9ns@5V,50pF
  • Quiescent Current (Max): 1uA
  • Package: SOT-23-5
  • Manufacturer: Texas Instruments
  • Mounting Type: Surface Mount
  • Logic Level - Low: 0.5V ~ 1.65V
  • Current - Quiescent (Max): 1µA
  • Voltage - Supply: 2V ~ 5.5V
  • Number of Circuits: 1
  • Packaging: Tube
  • Package / Case: SC-74A, SOT-753
  • Logic Level - High: 1.5V ~ 3.85V
  • Part Status: Active
  • Current - Output High, Low: 8mA, 8mA
  • Features: -
  • Base Part Number: SN74AHC1
  • Supplier Device Package: SOT-23-5
  • Number of Inputs: 2
  • Logic Type: AND Gate
  • Max Propagation Delay @ V, Max CL: 7.9ns @ 5V, 50pF
  • detail: AND Gate IC 1 Channel SOT-23-5
